※Basic technical parameters of the vehicle :
Quality parameters	Axle weight(kg)		7000/19000	Maximum total mass (kg)		26000
	Vehicle curb weight (kg)		9805	Rated mass (KG)		16000
Size parameters	Length (mm)		9780	Wheelbase (mm)		4575+1400
	Width (mm)		2500	Rear suspension		2375
	Height (mm)		3 335	rear wheelbase		18 5 0
	Front overhang		1 500	Departure angle		12
	Front track		1850	Approach Angle		1 9
Other parameters	Maximum speed (km/h)		80	Number of passengers allowed		2, 3 persons (including driver)
	Number of leaf springs		8/10+7	Drive type		6×4
	Number of tires		1 0	Tire specifications		11.00R20 18PR
※chassis
Chassis model				ZZ1267N464GF1K
manufacturer				China National Heavy Duty Truck Group Co., Ltd.
※ Cab configuration
Air conditioner	Heating and cooling air conditioning			central locking		have
electric glass	have			air brake		have
Orientation assistance	have
※engine
Model	MC11.40-60			Power(kw)/horsepower		2 5 7/ 350
manufacturer	China National Heavy Duty Truck Group Co., Ltd.			Displacement (ml)		7360
※spread				10 gears
※other
brake		air brake		turn	power steering
Voltage (volts)		twenty four		ABS	have
25T20D car body, imported hydraulic system, two-section hexagonal arm, 25-ton three-section support arm, split trailer, bilateral linkage operating device, two ten-ton hydraulic winches, 45-meter steel wire rope, diameter 18MM, equipped with a set of four steel forks. A set of towing fork covers, a set of steel lifting lug towing forks and a set of tire fixing devices. A long row of engineering warning lights. One set of auxiliary lights, one set of auxiliary air pipe assembly, two lashing chains

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

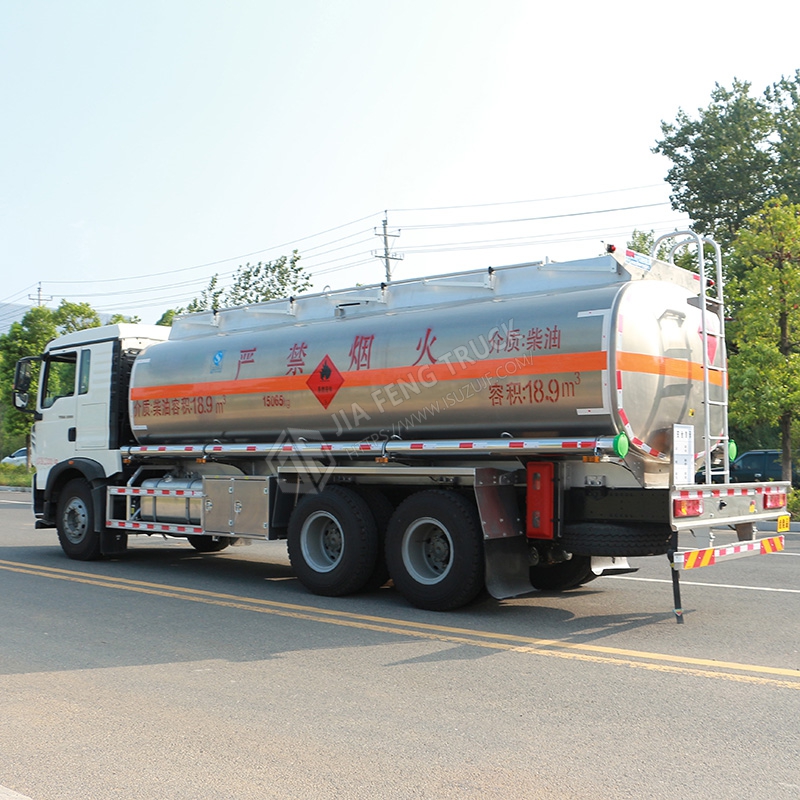

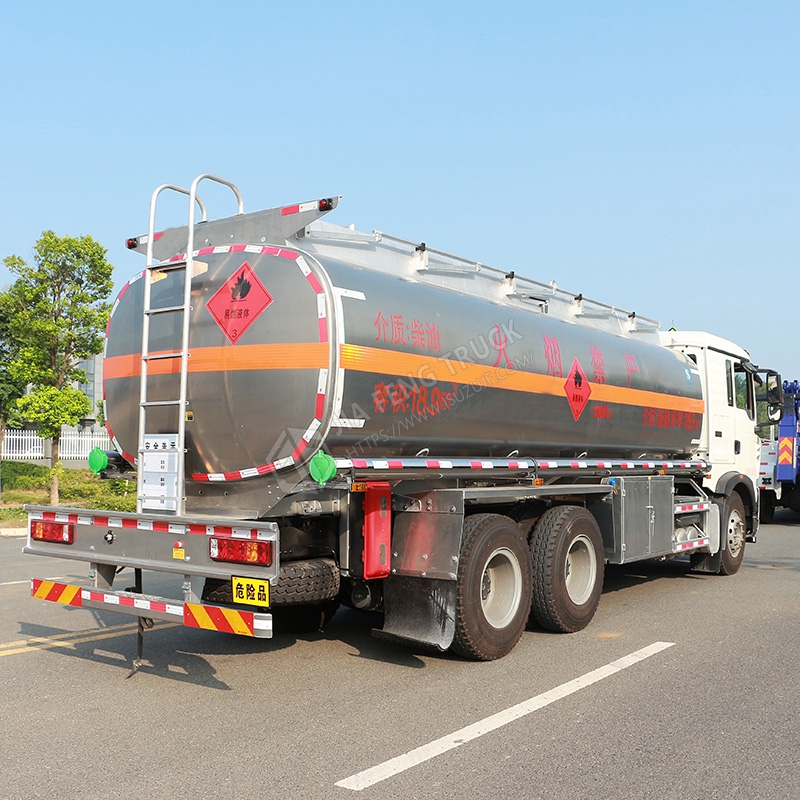

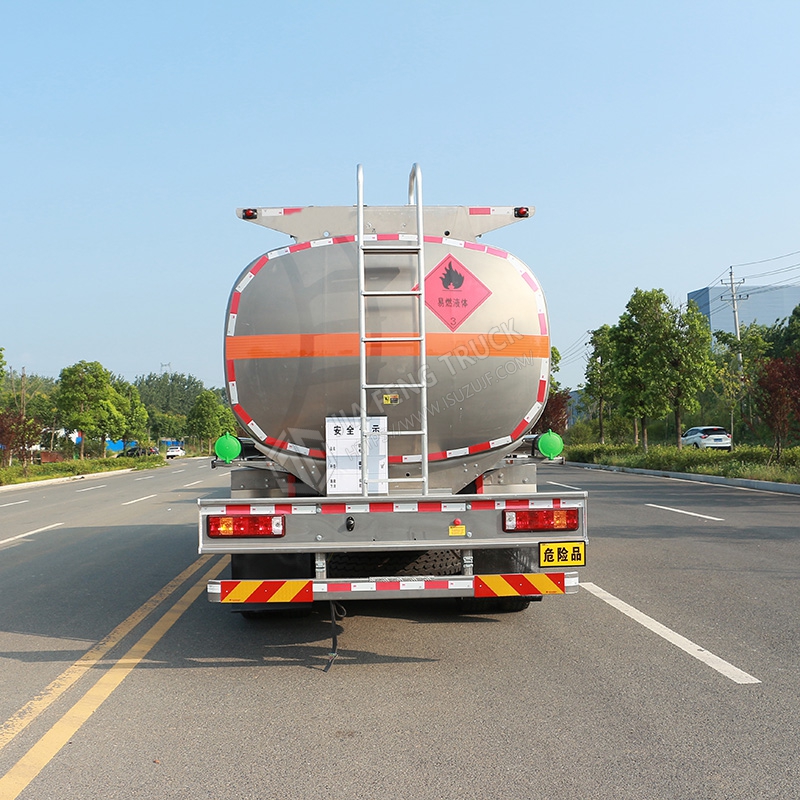

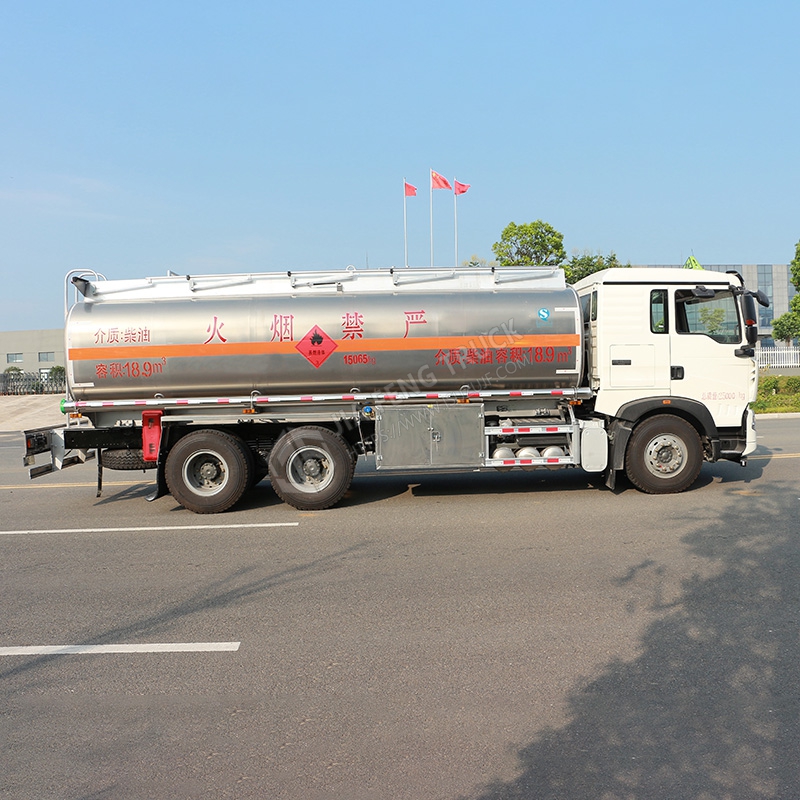

Sinotruk 17-Ton Aluminum Alloy Fuel Tank Truck
