※Basic technical parameters of the vehicle :
Quality parameters	Axle weight(kg)		6500/6500/19000 (two-axis group)	Maximum total mass (kg)		32000
	Vehicle curb weight (kg)		11305	Rated mass (KG)		20565
Size parameters	Length (mm)		11800	Wheelbase (mm)		1900+4500+1350
	Width (mm)		2550	rear suspension		2550
	Height (mm)		3 680	rear wheelbase		18 78
	front overhang		1 500	departure angle		11
	front wheelbase		2052	approach angle		14
Other parameters	Maximum speed (km/h)		79	Number of passengers allowed		2 or 3 people (including driver)
	Number of leaf springs		8/10+7	Drive form		8×4
	tire quantity		12	Tire specifications		12.00R20 20PR
※chassis
Chassis model				CA5320GYYP66K1L6T4E6
manufacturer				China FAW Group Co., Ltd.
※ Cab configuration
Air conditioner	Heating and cooling air conditioning			central locking		have
electric glass	have			air brake		have
Orientation assistance	have
※engine
Model	CA6DL6-36E6			Power(kw)/horsepower		2 68/350
manufacturer	China FAW Group Co., Ltd.			Displacement (ml)		8570
※Transmission				10 gears
※other
brake		air brake		turn	power steering
Voltage (volts)		twenty four		ABS	have
Aluminum alloy plate, cylinder 5mm thick, head 5mm thick, partition 5mm thick, single warehouse, one tank mouth on the top of the tank, full set of European standards, 1 seabed valve with voice alarm device, with 80/60 special oil pump (can Pump in and pump out), (optional high-flow tanker and 15-meter thick reel and gun), rear ladder, manual guardrail, tool box, rear bumper, side guardrail

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

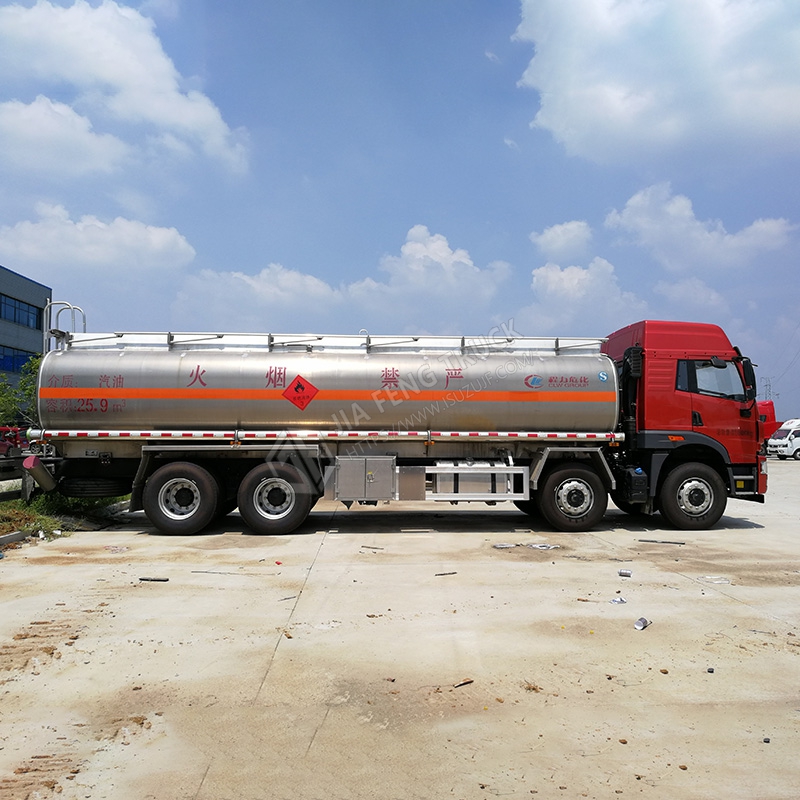

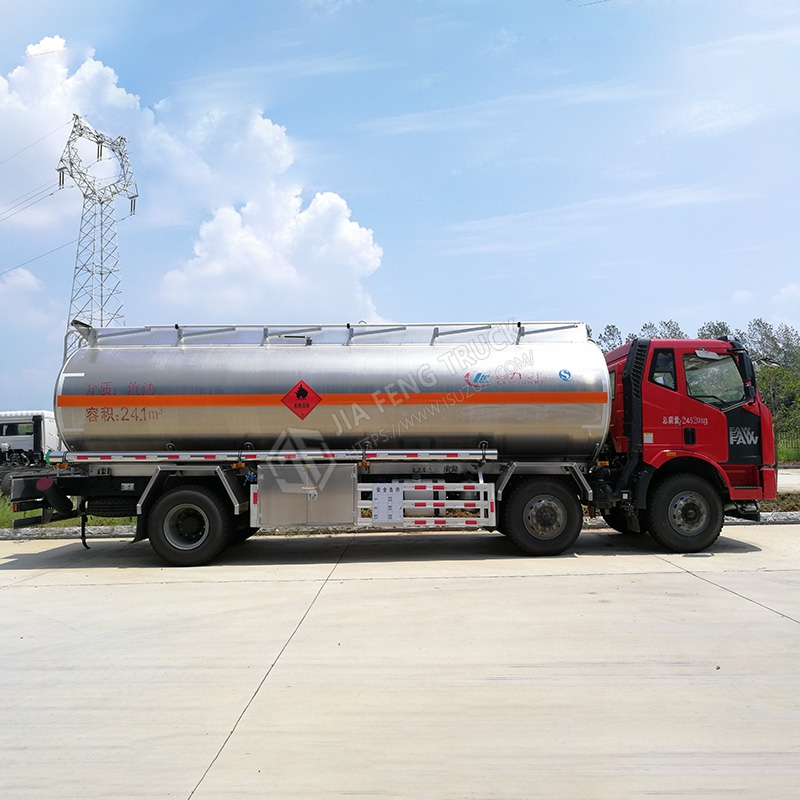

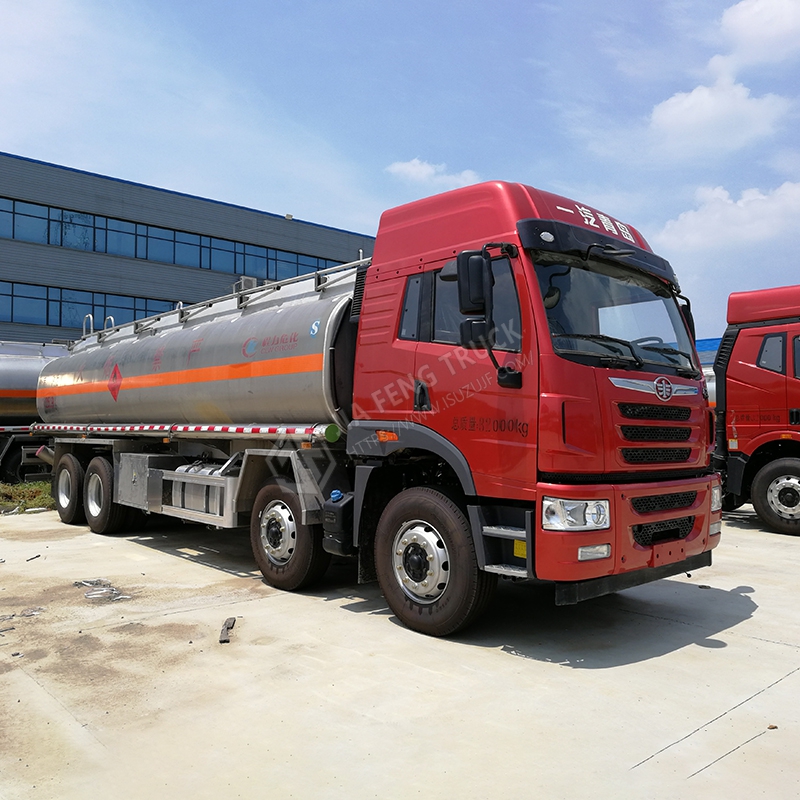

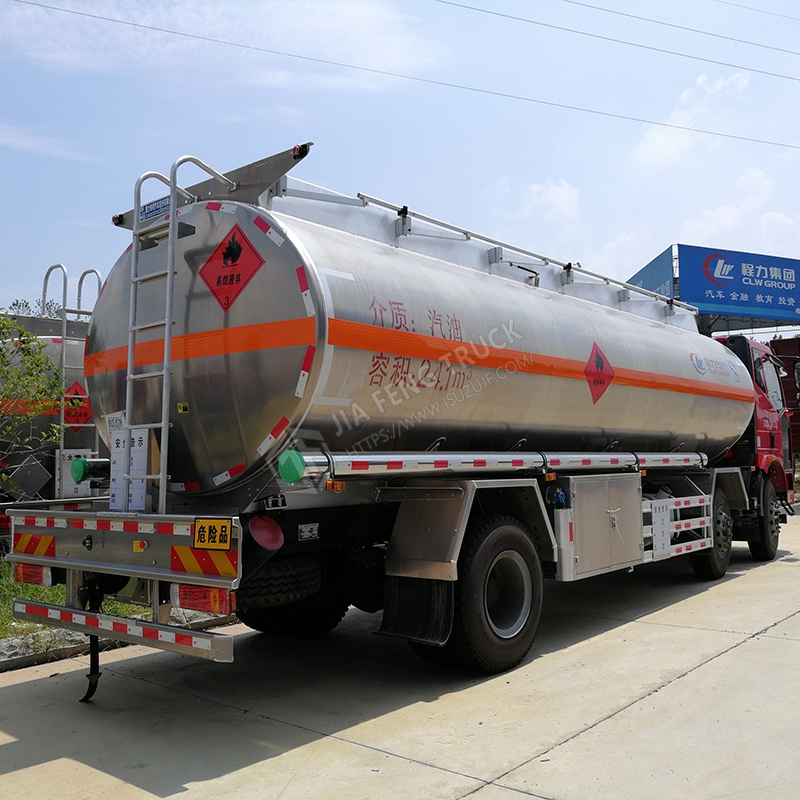

FAW 4x8 20-ton aluminum alloy oil tanker truck
