Overall technical parameters | ||||||

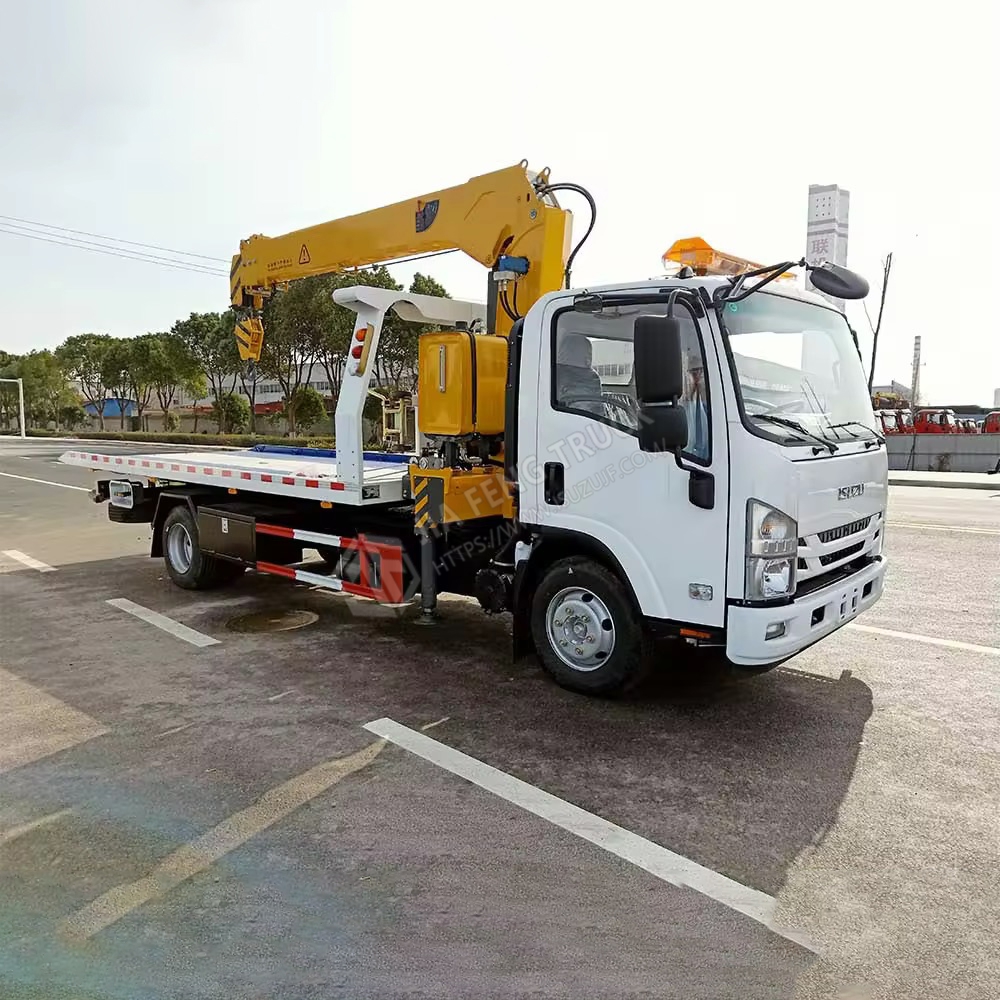

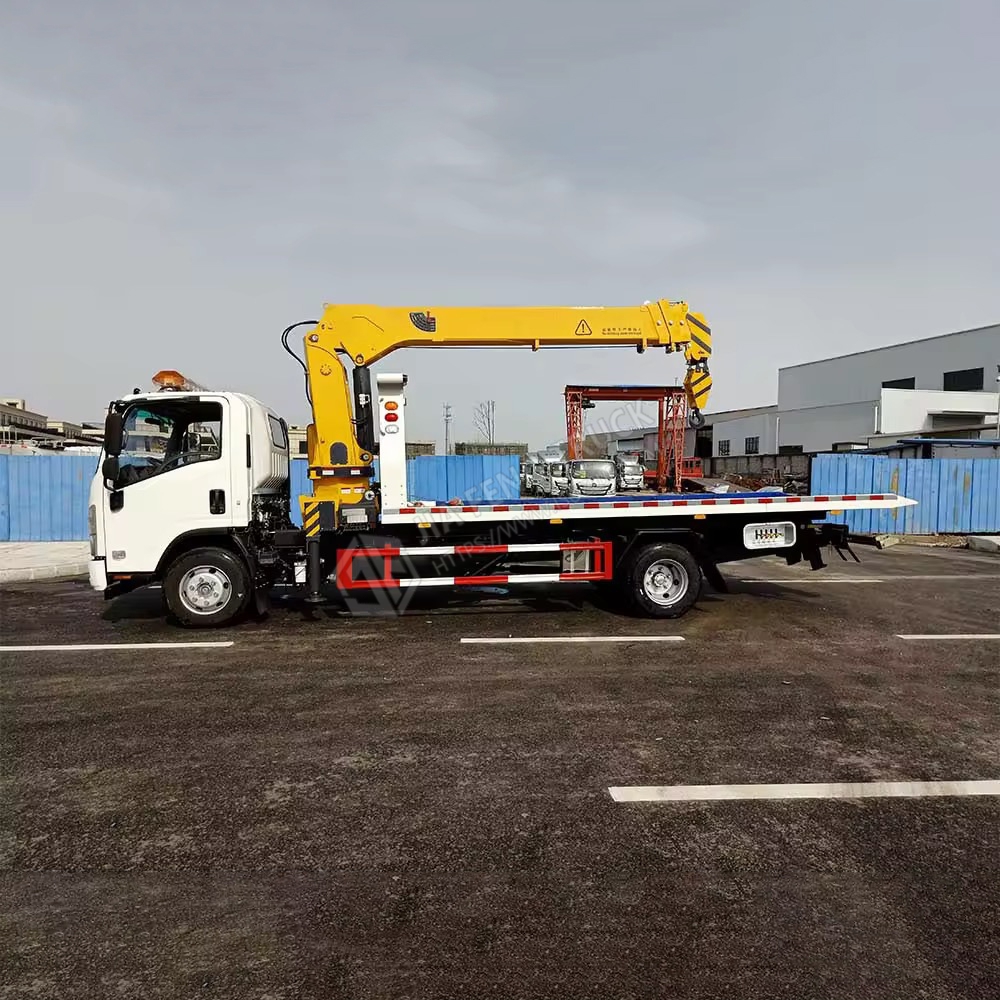

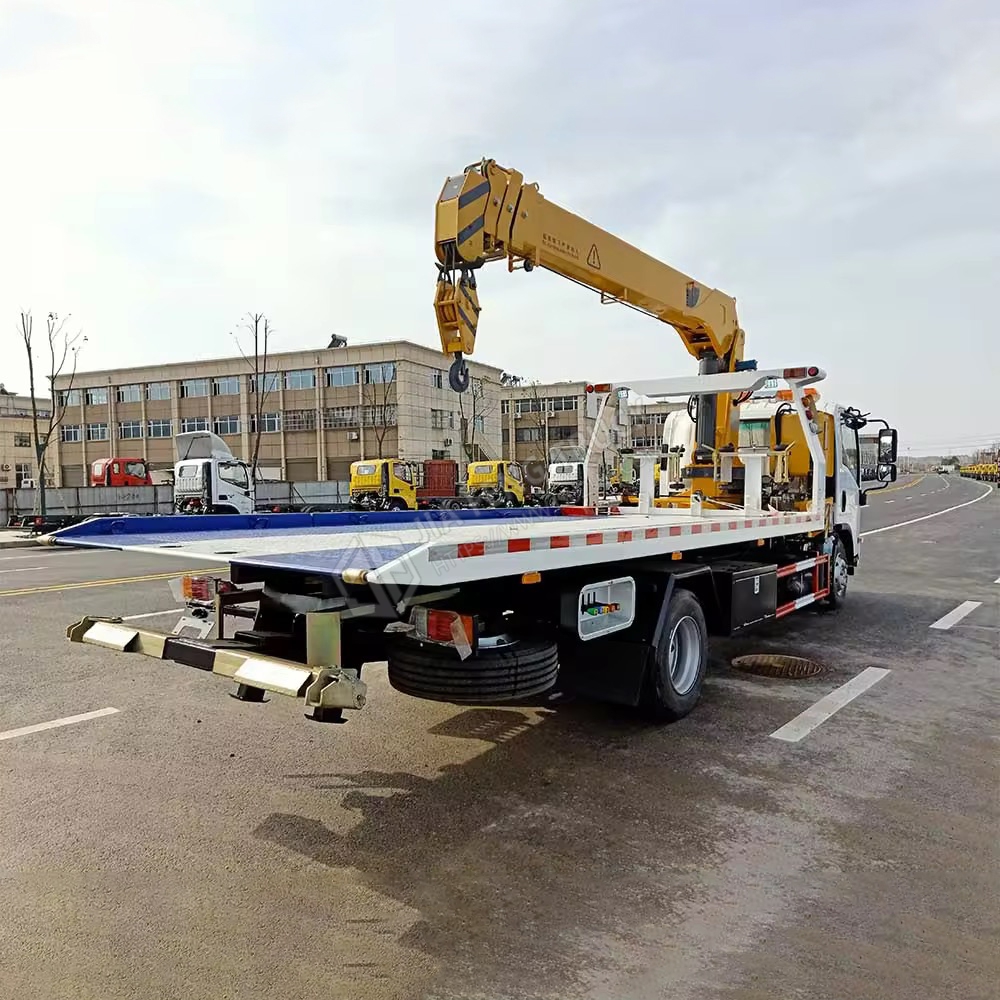

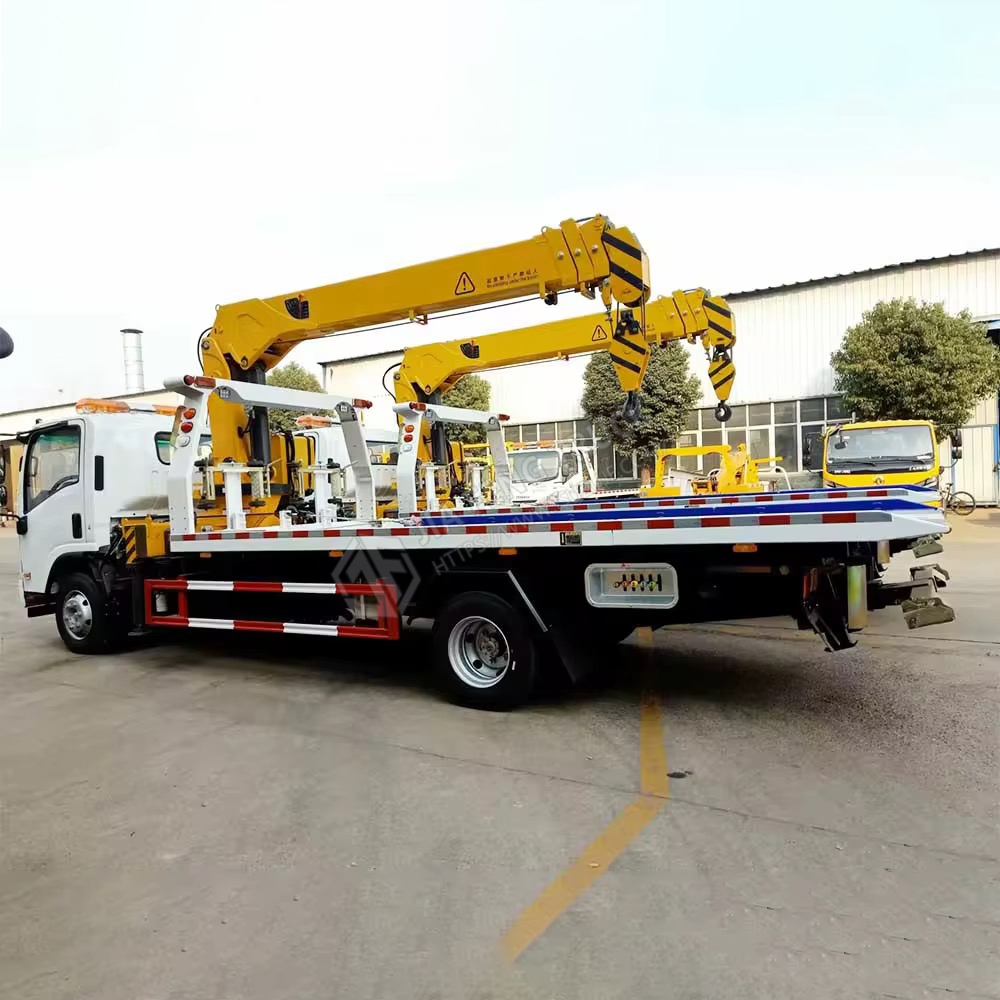

Product Name | Crane road rescue vehicle | Gross weight (kg) | 7 300 | |||
Rated load capacity (Kg) | 2970 | External dimensions (mm) | 5995x1950x2800 | |||
Empty vehicle weight (Kg) | 4 1 00 | Slab load-bearing capacity (KG) | 5000 | |||
Approach angle/departure angle (°) | 24/16 | Front/Rear Overhang (mm) | 1015/1620 | |||
Axle load (Kg) | 2500/4 8 00 | Maximum speed (km/h) | 115 | |||
Chassis technical parameters | ||||||
manufacturing enterprises | Qingling Motors Co., Ltd. | Chassis Brand | Isuzu | |||
Number of axes | 2 | Number of tires | 6 | |||
wheelbase | 3 815 | |||||
Tire specifications | 7.00R16LT | |||||
Number of leaf springs | 8/6+5 | |||||
Front track width (mm) | 1504 | Rear track width (mm) | 1425, 1525 | |||
Fuel type | diesel fuel | Emission standards | GB18352.6-2016 National VI | |||
Engine type | Engine manufacturers | Power (kilowatts) | gearbox | |||
4KB1-TCG60 | Isuzu (China) Engine Co., Ltd. | 96 | Isuzu MSB 5th gear | |||
Crane configuration parameters | ||||||
Crane Model | XCMG 3-ton - 3-section boom straight boom | |||||
boom length | 7.7 meters | Lifting height | 9.5 meters | |||
fuel tank capacity | 100L | crane self-weight | 1229Kg | |||
outrigger span | 2488-6088mm | Sub-beam configuration | 1200mm*8mm manganese steel | |||
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
