Vehicle model		5185ZXXEQ6
Chassis model		EQ1185LJ9CDE
Wheelbase		4500mm
engine model		D4.0NS6B195
Engine power		Cummins 195 HP
[Body configuration]
Control System	Remote control + manual operation, fast and safe, proprietary technology, industry leading
Hydraulic system	The cylinders, pumps and valves are specially designed by our company and produced by well-known domestic factories. They are reasonably matched and cost-effective; imported seals are used in key parts, with stable performance and reliable quality.
safety protection	(1) The main cylinder is specially equipped with a built-in two-way unloading valve, which effectively reduces the system pressure at the end of the stroke and protects the entire hydraulic system and the pull arm for durability.
	(2) The lifting system is equipped with a balancing device, which can move at a constant speed regardless of no-load or heavy load, to avoid damage to vehicles or equipment caused by strong impacts;
	(3) The hydraulic system and each branch oil circuit are equipped with two-way overload protection, and the rated pressure is adjusted according to the actual working conditions of each moving part to effectively avoid abnormal vehicle damage caused by system overload or improper use;
	(4) The hydraulic system is equipped with an oil line explosion-proof locking device to prevent potential safety hazards due to oil pipe bursts and ensure the safety of personnel and vehicles;
	(5) The upper part of the pulling arm is equipped with a reinforced hydraulic box locking device, which can be used correctly to ensure transportation safety.
interlock protection	Each action is associated with interlocking protection to prevent hydraulic or mechanical failures caused by misoperation, eliminate potential safety hazards, and extend the service life of the vehicle.
Pull arm structure	The tensioning arm structural parts are made of high-strength steel, with special partial treatment, which has strong bearing capacity and is not easy to deform.
arm tops	The upper arm tops have been polished and rust-removed, and painted through multiple processes to ensure that the appearance and color meet the requirements; the upper arm top assemblies have undergone special bench tests and heavy-duty load tests to ensure quality.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

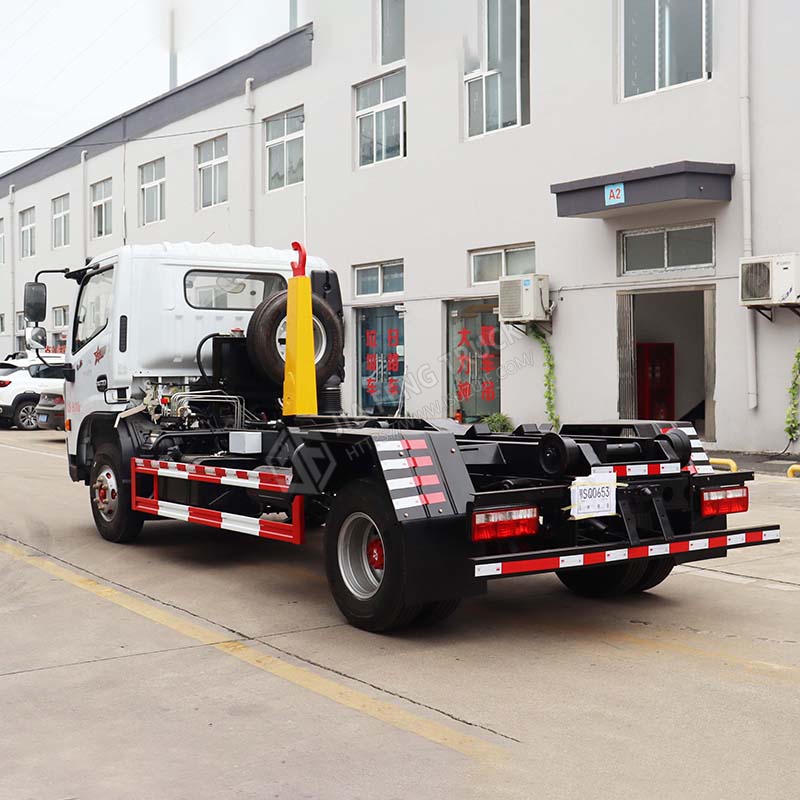

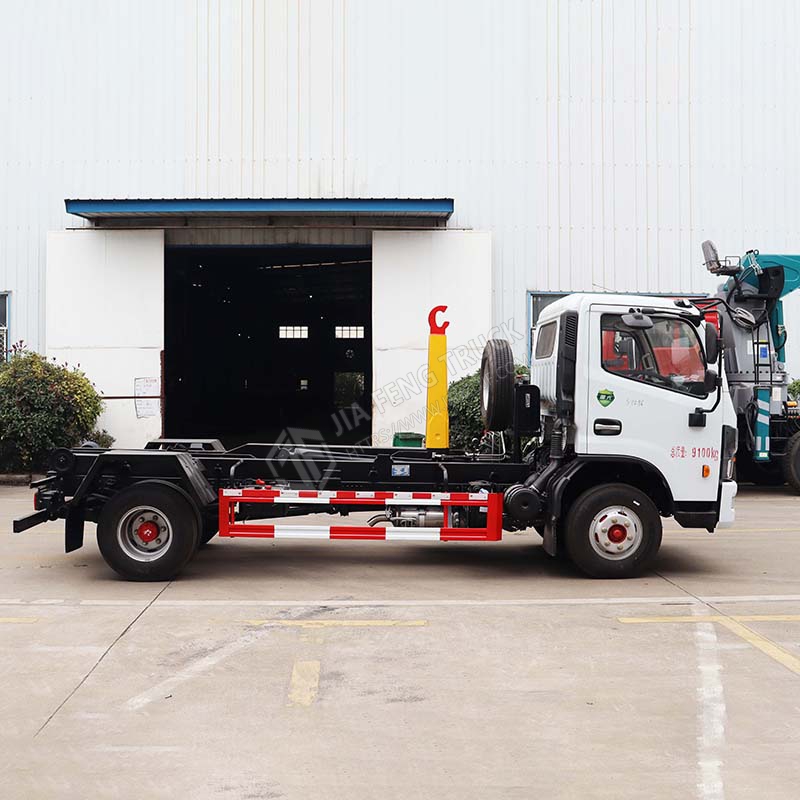

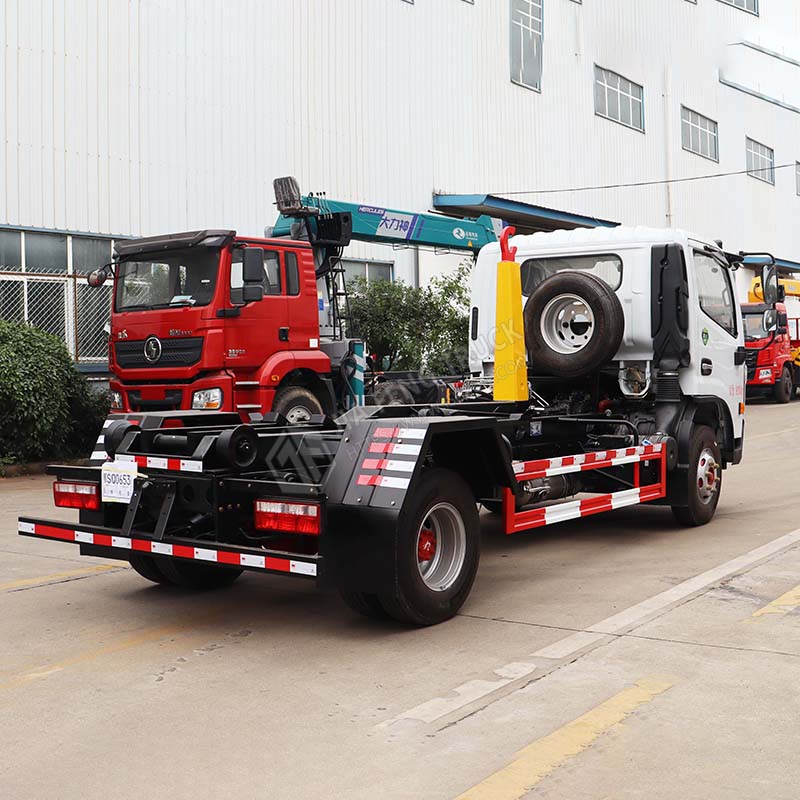

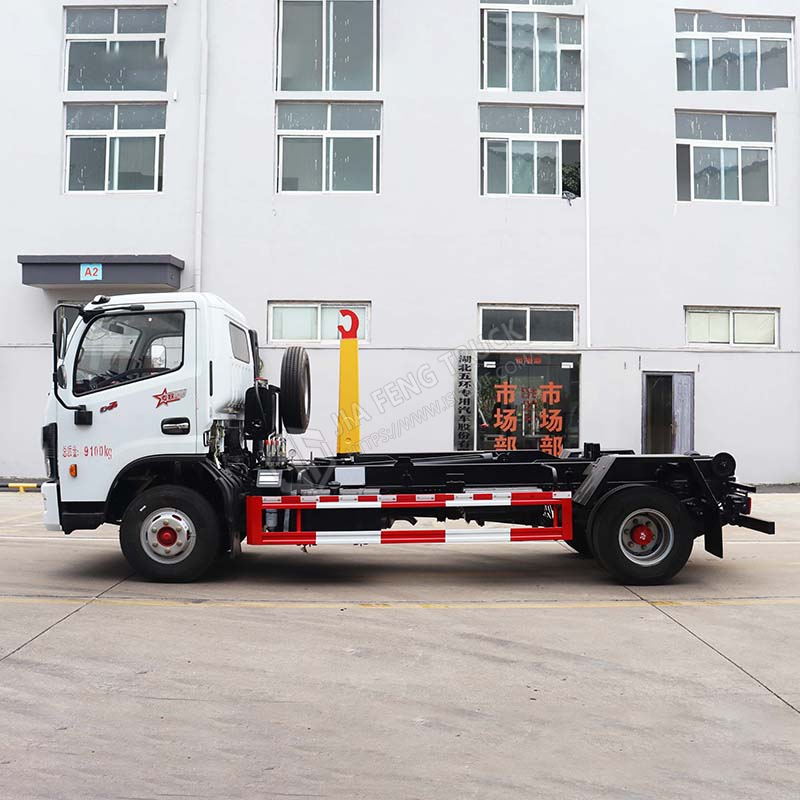

Dongfeng DoriKa Hook Arm Garbage Truck
