Chassis configuration parameters
brand	ISUZU
model	6UZ1-TCG61
engine	6UZ1-TCG61 engine Euro III
gearbox	10 gears
Wheelbase	1850+2980+1370
Drive axle	MCX16ZG double bridge (drum)
Maebashi	VGD95 front axle (drum)
tire	11.00R20 18PR
bumper	high position
tank	400L
Drive form	8x4
Tank and body configuration parameters
Effective volume of tank (m³)	16
Tank material	Q355( 6 mm)
Header	Q355( 7mm )
blade	Double spiral curved surface + wear-resistant strip (3mm)
pumps, motors	CSIC90/INTPAP90
Reducer	PMP/Bonfiglioli
heat sink	Xinxiang Jiuhe 18L
Front and rear supports	Plate box structure
In and out of hopper	Q345 manganese plate production
Discharge chute	Equipped with an extended auxiliary chute that can rotate 180 degrees horizontally
water supply system	Large capacity air pressure water tank (300L)
Control method	Trinity (cab, rear sides)
Rotation speed (r/min)	0-14
Concrete slump (mm)	70-260
Tilt angle (°)	11.8
Discharge residual rate (%)	≤1
Top painting
Primer	Iron red acrylic
Medium coating	High gloss gray
Topcoat	polyurethane

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

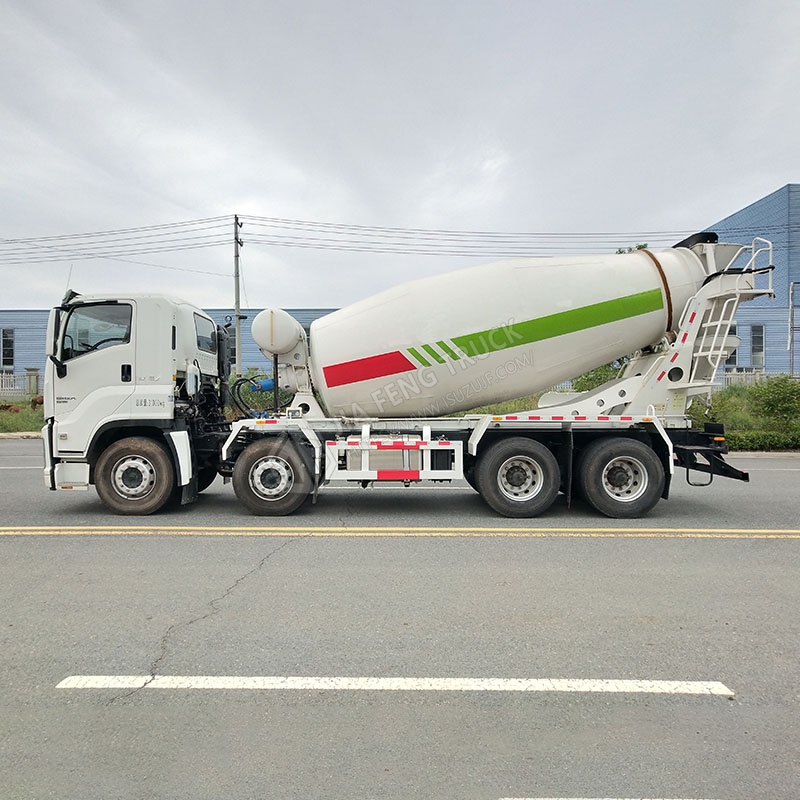

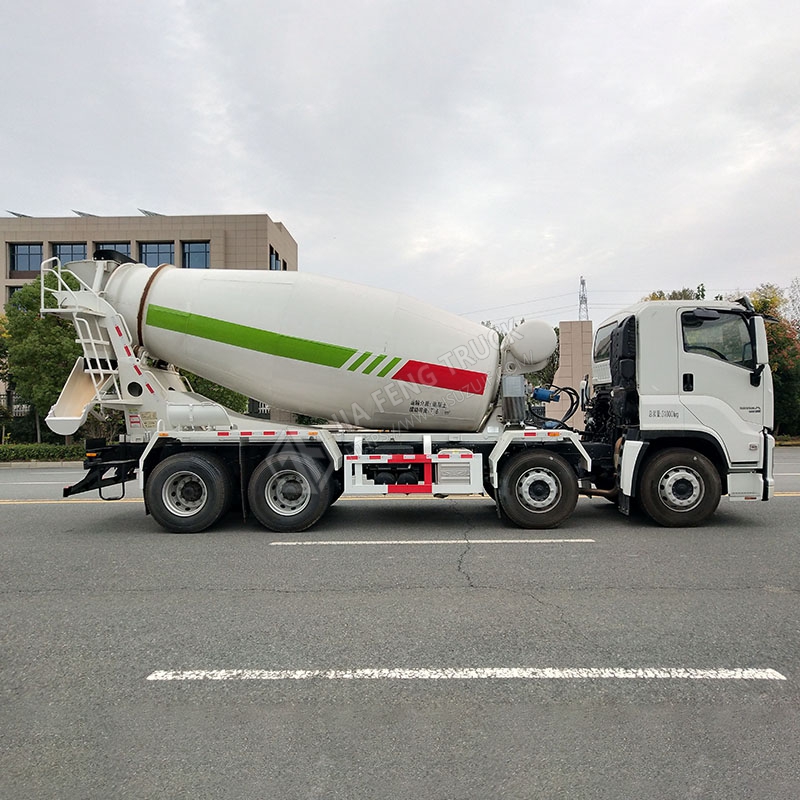

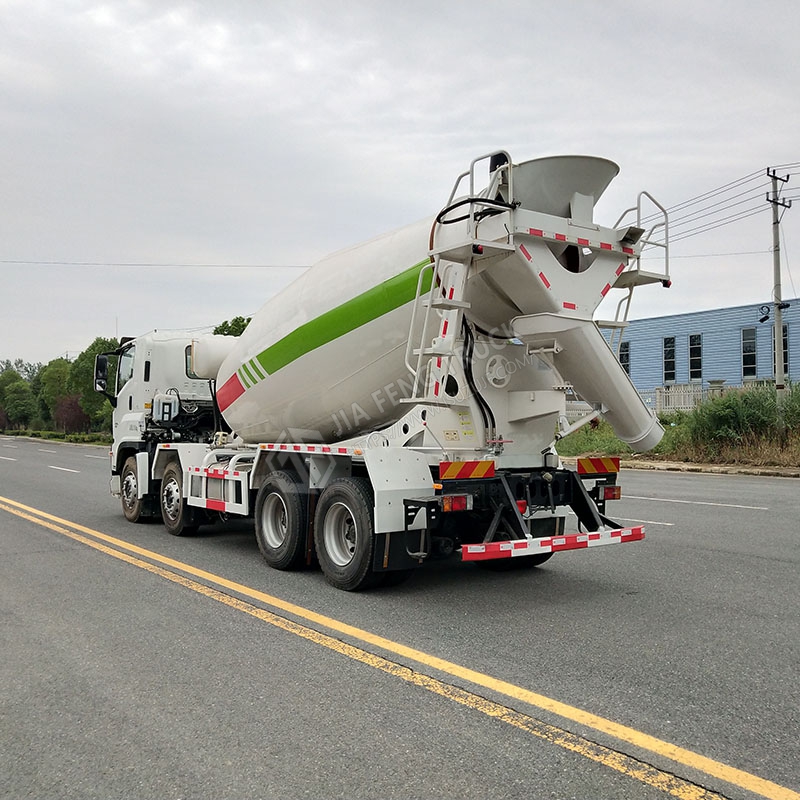

Isuzu 4-Axle Mixer Truck
