External dimensions:	9000x2500x3300 mm
Total mass:	18000kg
Rated load capacity:	9400kg
Curb weight:	8390kg
Chassis model:	QL1180JQFRY
Type:	4×2,flat-head diesel truck
Engine model:	4HK1-TC60
Maximum engine power :	150kW
Exhaust emissions:	National VI
Maximum speed:	89 km/h
Wheelbase:	4500 mm
Equipped with an Isuzu MLD six-speed transmission, air conditioning (heating and cooling), power steering, central locking, power windows, multi-function steering wheel, multi-function LCD instrument cluster, ABS, and air brakes. Standard equipment for this class of vehicle is 295/80R22.5 18PR tires.
Wastewater tank volume:	10m 3
sewage tank cross-sectional shape	round
Tank thickness	6mm
Vacuum pump model:	SK-15
Vacuum pump flow rate:	15m³/min
Ultimate pressure	6700Pa
power	30KW
rotational speed	980 r/min
Inlet/ outlet valve diameter	100MM / 150MM
Tank lifting method	Front-mounted hydraulic cylinder lifting
Rear door opening method	Hydraulic opening with locking device
Clear water valve	100MM
The vacuum tube is fitted with a stainless steel filter (to prevent impurities from entering the pump).
100mm diameter shock-resistant pressure gauge is installed at the position of the four-way suction valve to resist vibrations in the working environment and reduce the impact of media pressure pulsation.
Made of high-quality steel plates from Wuhan Iron and Steel Group, with a wall thickness of 6 mm, the tank body features a well-designed baffle plate in the middle, and high-strength arc-shaped end caps at both the front and rear.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

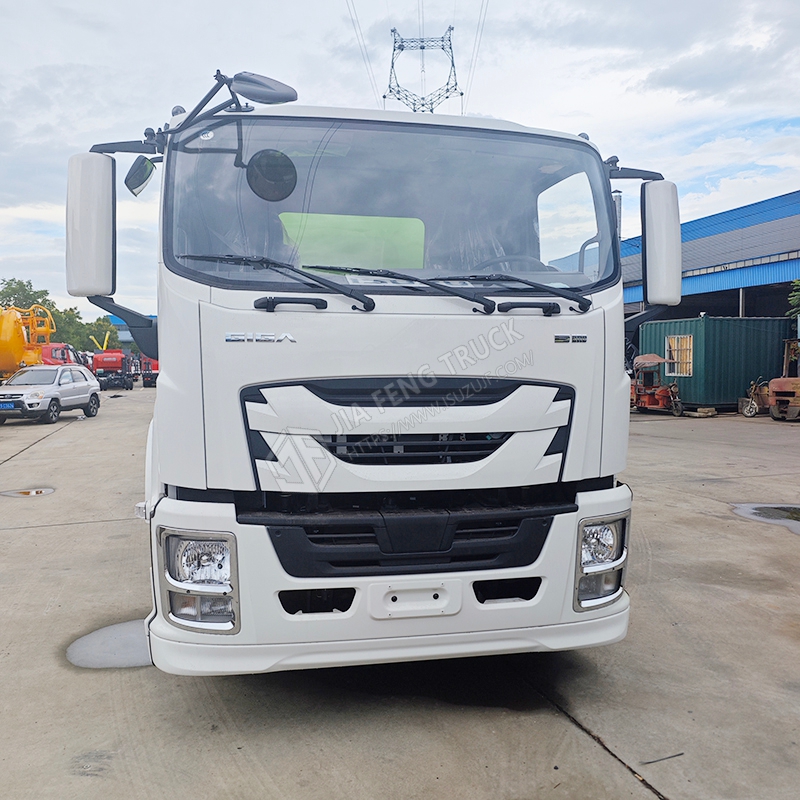

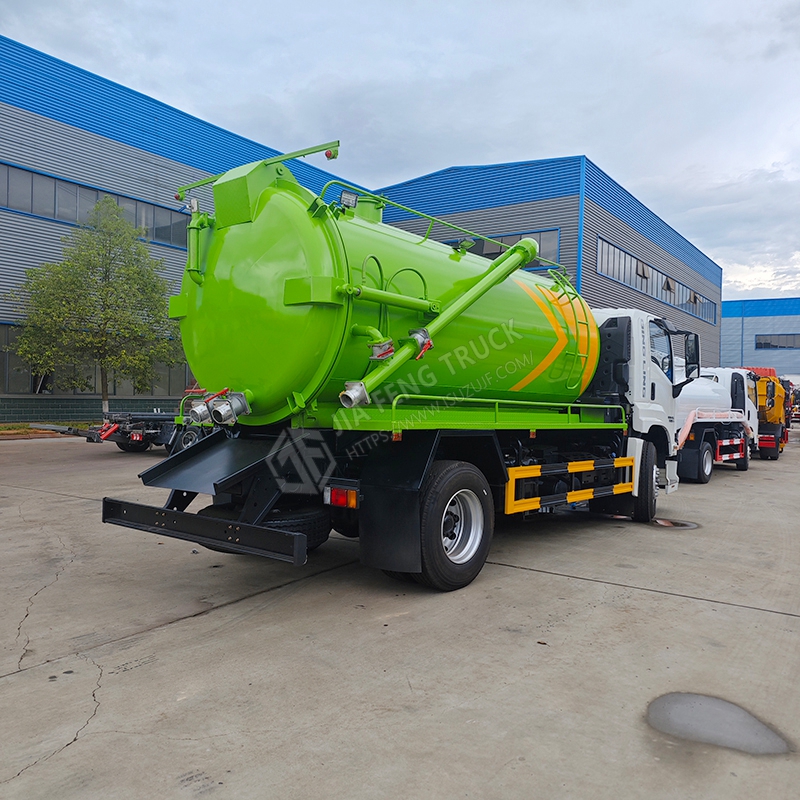

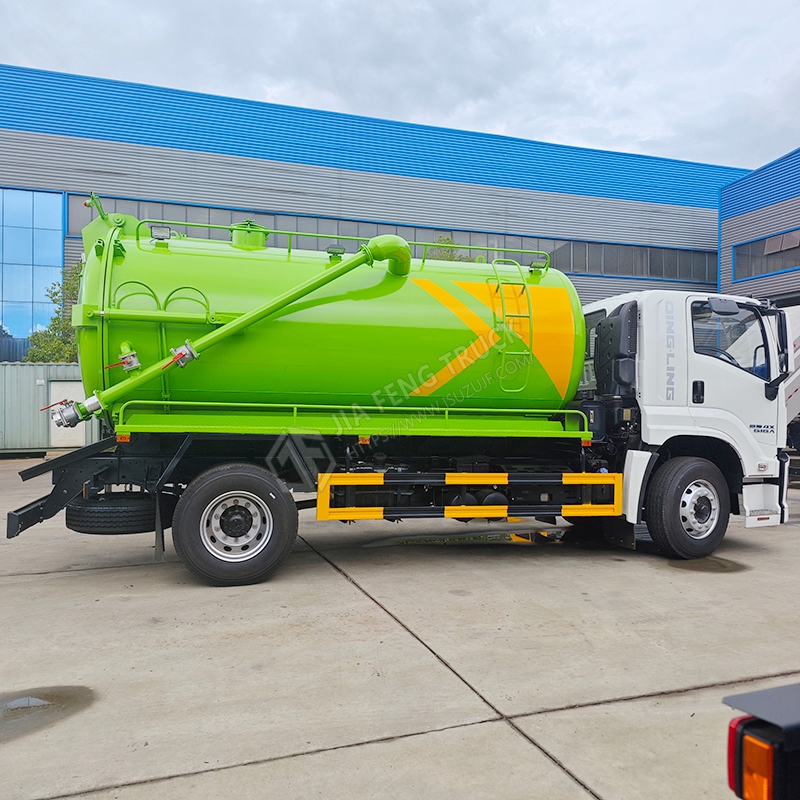

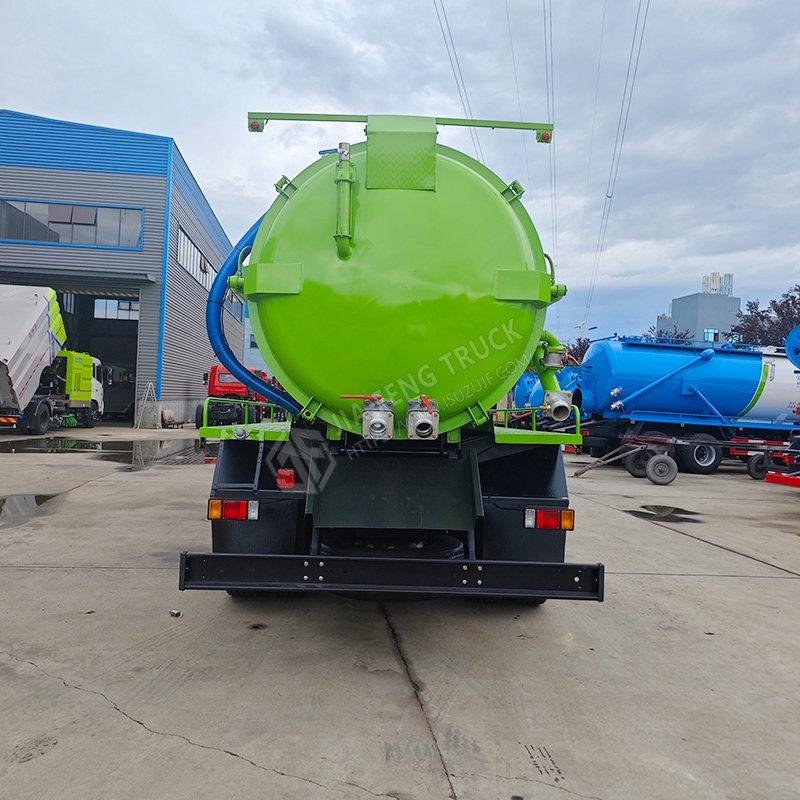

Isuzu GIGA Green Vacuum Truck
