Product number	CLW5070GNY6	Vehicle size	5995×2000×2350mm
Rated volume	6000L	Tank size (	3700×1800×1200mm
Rated contained mass	3600kg	curb weight	3630kg
Divide warehouse	Tongcang	tank form	Oval horizontal type, integrated with car tank
Tank material	SUS304-2B food grade	Liner thickness	δ3.0 mm
Outer cover thickness	δ1.0mm	Milk outlet diameter	∮51mm national standard/non-standard
Insulation Materials	70 mm polyurethane spray +10mm rubber plastic insulation cotton	Insulation performance	Using polyurethane spray foam, the thermal insulation performance does not exceed 2℃ for 24 hours
Tank head	Single layer flat head Thickness 3.5 mm	Cleaning method	CIP automatic cleaning, each warehouse is equipped with cleaning balls to meet 360° cleaning requirements
Car chassis	Dongfeng Dolica D 6 chassis, wheelbase 3308 mm, YCY24140-60 Yuchai 1 40- horsepower National VI engine, Wanliyang 6-speed gearbox, 7.00R16 wire tires, air brakes, with A BS , air conditioning, electric glass;
Remark	1. The milk discharge switch and cleaning switch are made into a cluster structure, and the number of each milk bin is marked . Before the vehicle leaves the factory, the transport medium and announced volume are sprayed on the tank according to the announcement requirements; 2. Tank volume 4700 L; 3. The rear operation box adopts gas spring hatchback type opening and is equipped with an opening handle; 4. Each manhole cover and rear tool box are equipped with a lead sealing device to facilitate the management of the milk truck when loading and unloading fresh milk; 5. Equipped with a movable ladder for personnel to enter and exit the tank; 6. Through-silo design , no support plate, one ∮ 500 mm food-grade tank mouth; 7. There are two automatic cleaning balls in the warehouse, controlled by one valve, and the valve interface is ∮ 51 mm.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

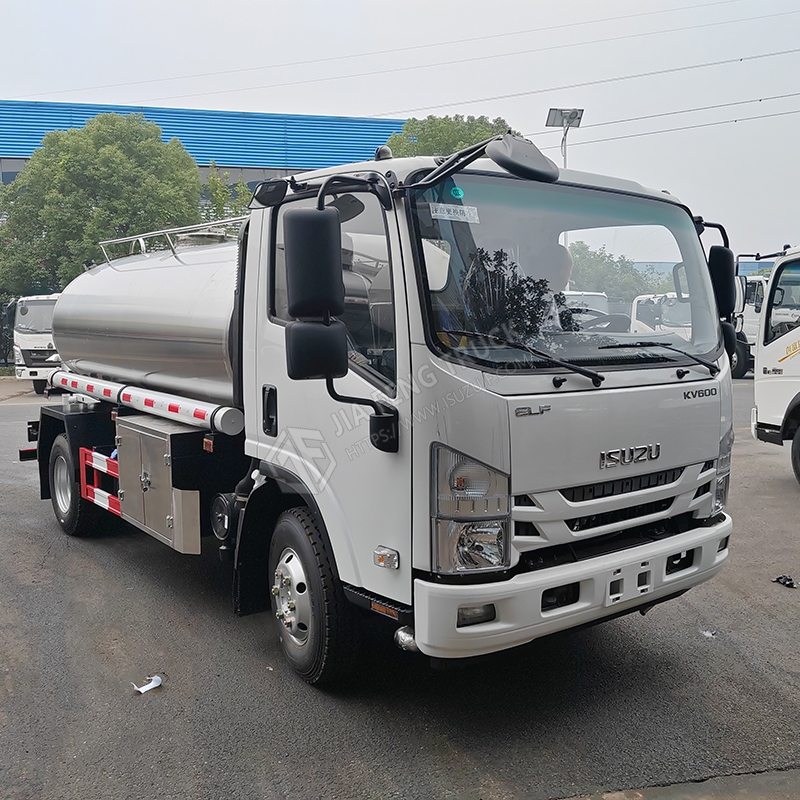

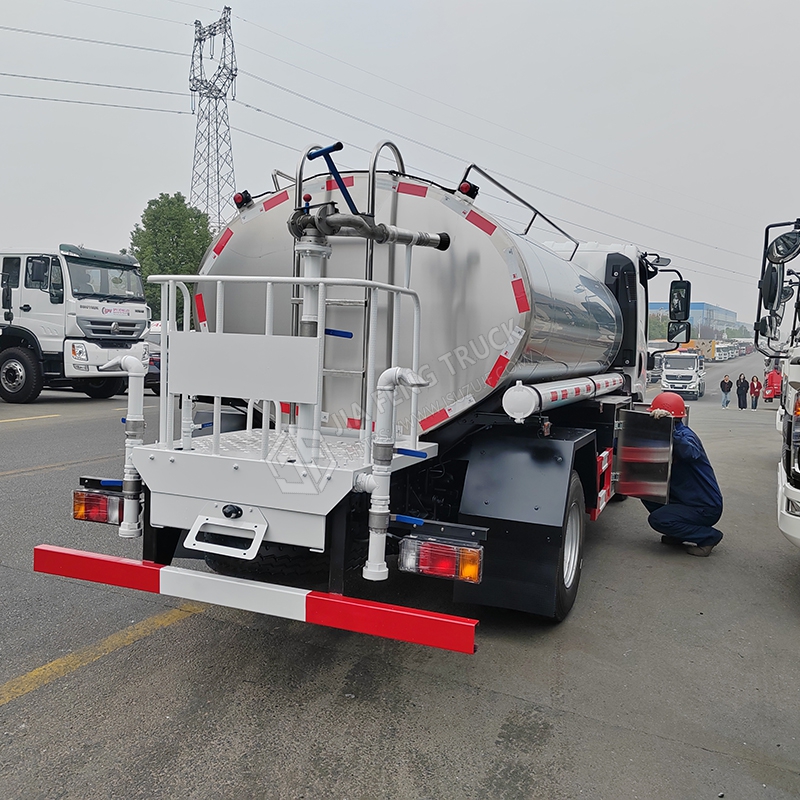

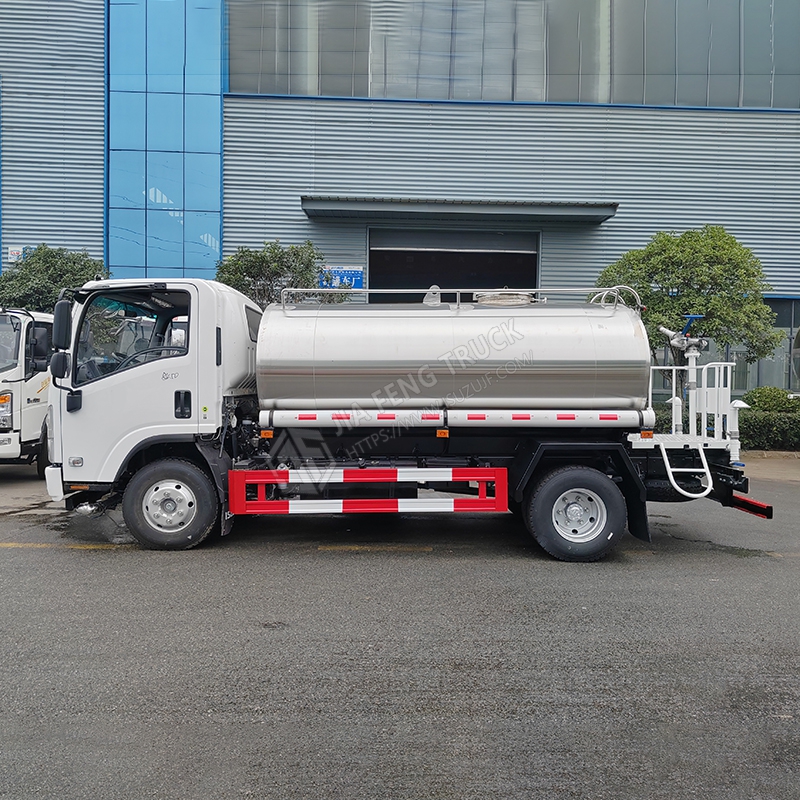

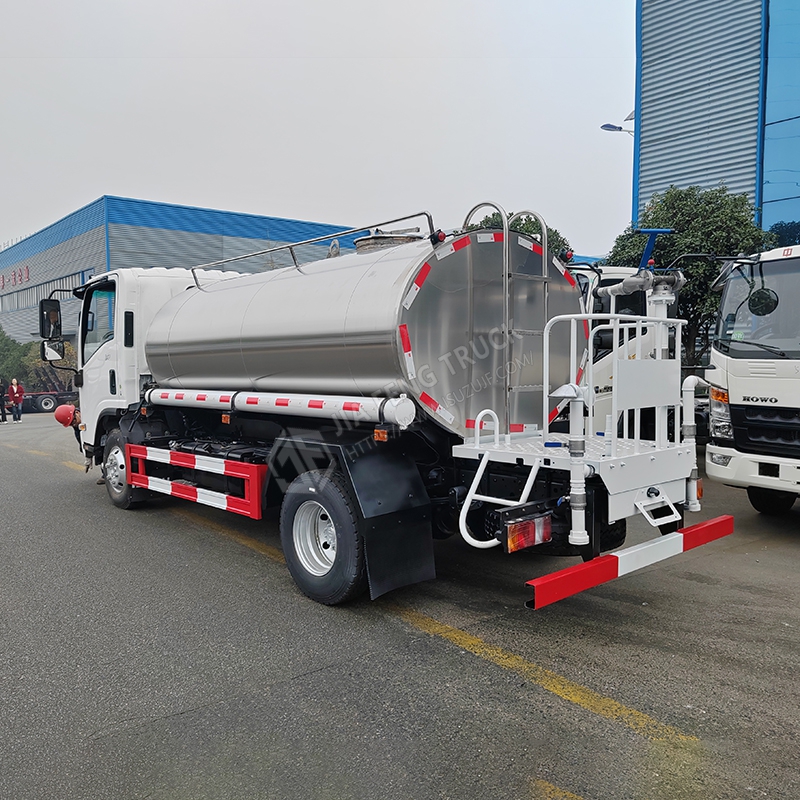

Isuzu 8-cubic-meter milk transport truck
