Rated   volume

20000   L

Tank size

7300×2490×172 0mm

Rated   contained mass

15000kg

curb weight

9805kg

Divide   warehouse

3   warehouses divided equally

tank   form

Oval horizontal type, integrated   with car tank

Tank   material

SUS304-2B   food grade

Liner   thickness

δ3.0 mm

Outer   cover thickness

δ1.0mm

Milk   outlet diameter

∮51mm national   standard/non-standard

Insulation   Materials

70   mm polyurethane spray

+10mm   rubber plastic insulation cotton

Insulation   performance

Using polyurethane spray foam,   the thermal insulation performance does not exceed 2℃   for 24 hours

Tank   head

Single layer butterfly head

Thickness 3mm

Cleaning   method

CIP automatic cleaning, each   warehouse is equipped with cleaning balls to meet 360°   cleaning requirements

Car   chassis

Jiefang J 6 three-axle chassis,   wheelbase 1900+3800 mm, C A6DK1-26E6 , 260 horsepower National VI engine,   Jiefang 9-speed gearbox, 11.00R20 steel tires, air brakes, with A BS , air   conditioning, electric glass;

Remark

1. The   milk discharge switch and cleaning switch are made into a cluster structure,   and the number of each milk bin is marked. Before the vehicle leaves the   factory, the transport medium and announced volume are sprayed on the tank   according to the announcement requirements;

2. Tank   volume 20,000 L;

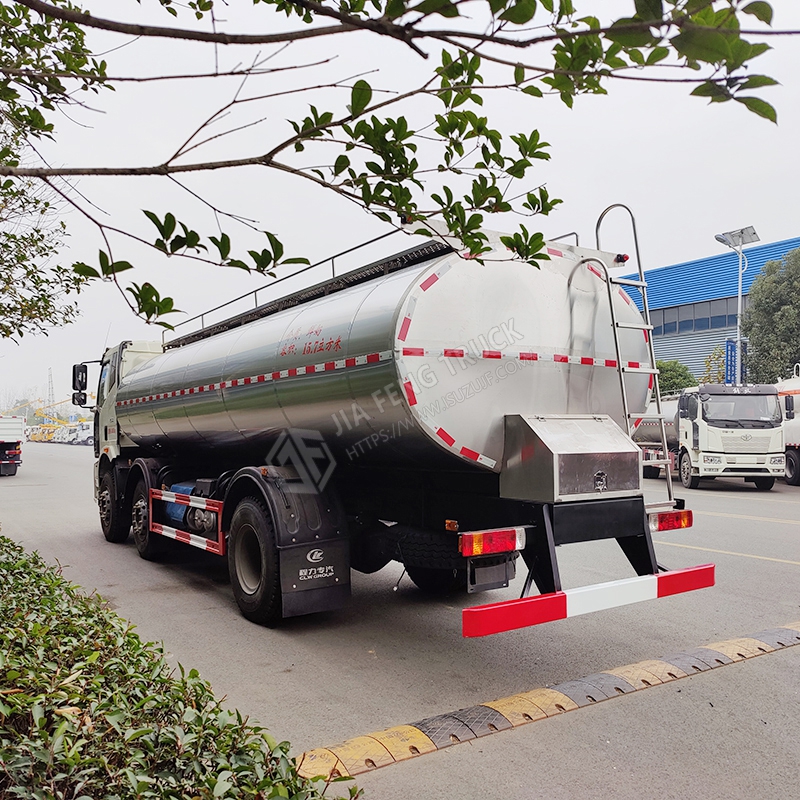

3. The   rear operation box adopts gas spring hatchback type opening and is equipped   with an opening handle;

4. Each   manhole cover and rear tool box are equipped with a lead sealing device to   facilitate the management of the milk truck when loading and unloading fresh   milk;

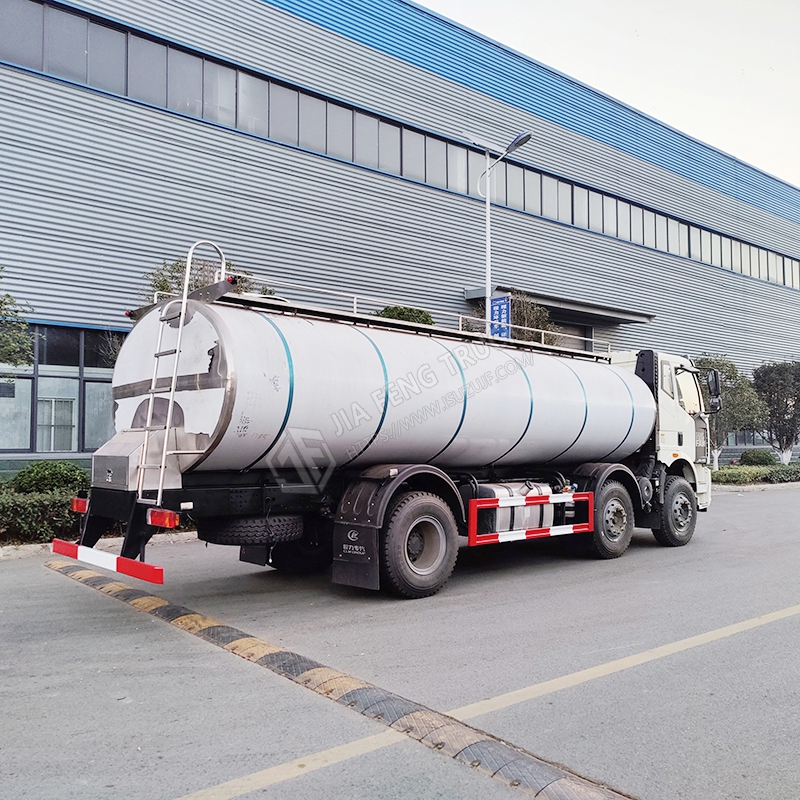

5. Equipped   with a movable ladder for personnel to enter and exit the tank;

6. 3 warehouses   equally divided [can be customized], 2 bulging support plates, 3 ∮ 500 mm food-grade   can mouths;

7. There are 2 automatic cleaning balls in   each warehouse, controlled by 3 valves, and the valve interface is ∮ 51 mm.
