Vehicle configuration parameters:
Product Name	Compactor garbage truck
Overall vehicle dimensions (length × width × height)	11010×2 550 × 3 450
Total mass	31,000 kg
Rated load capacity	15010 kg
curb weight	15860 kg
Chassis configuration parameters:
Chassis Model	ZZ5316XXYN466GF1
Cab color	jade white
Drive form	10×4
wheelbase	1800+3775+1400 mm
Engine Model	WP8.350E61(Weichai)
Engine power	257kW (Weichai)
Engine horsepower	350 horsepower(Weichai)
gearbox	10 gears
Emission standards	GB3847-2005, GB17691-2018 Country VI
tire	11.00R20 16PR (1 tire including spare)
other	Air brake, ABS, air conditioning, and other standard features on Dongfeng chassis.
Dedicated configuration parameters:
Effective volume of the enclosure	Approximately 25 m³
Box shape	New type of arc
Box material	Q345 manganese steel (5 on the edge, 5 on the bottom)
Compression ratio	≥2.5
Effective volume of the filler	≥1m³
Loading cycle time	≤25s
Feeding cycle time	≤15s
Time to shirk garbage	≤35s
Control method	Automatic, Manual
Hydraulic system pressure	18MPa
Multi-way directional valve	Jiangsu 2+3
hydraulic oil pump	Double gear pump
Hydraulic cylinder	Jiangsu Hydraulic Cylinder
PTO	Jiashan, Zhejiang
Electrical control system (PLC one-button cycle)	Siemens

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

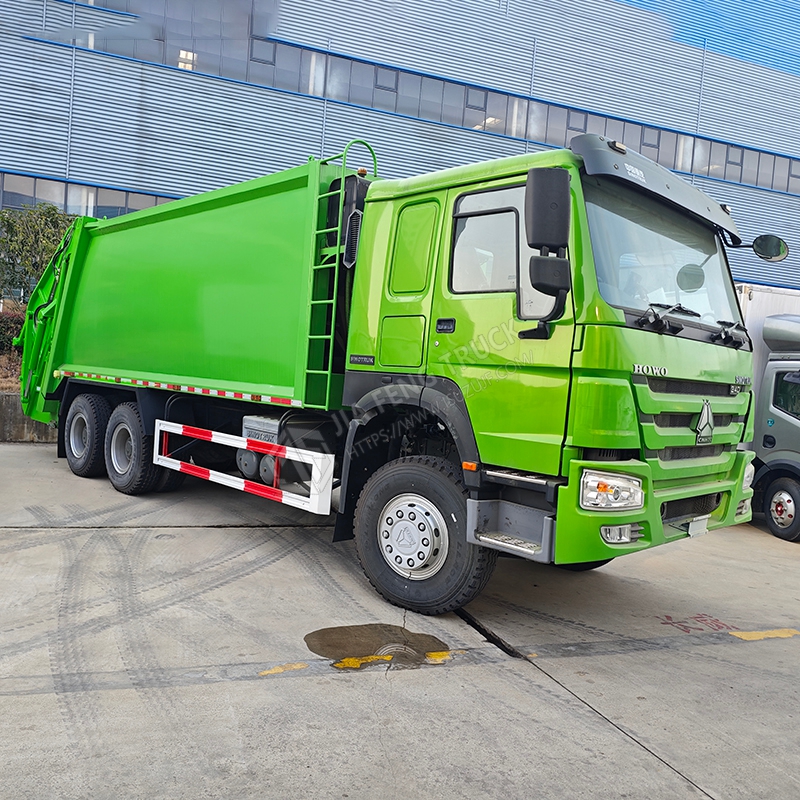

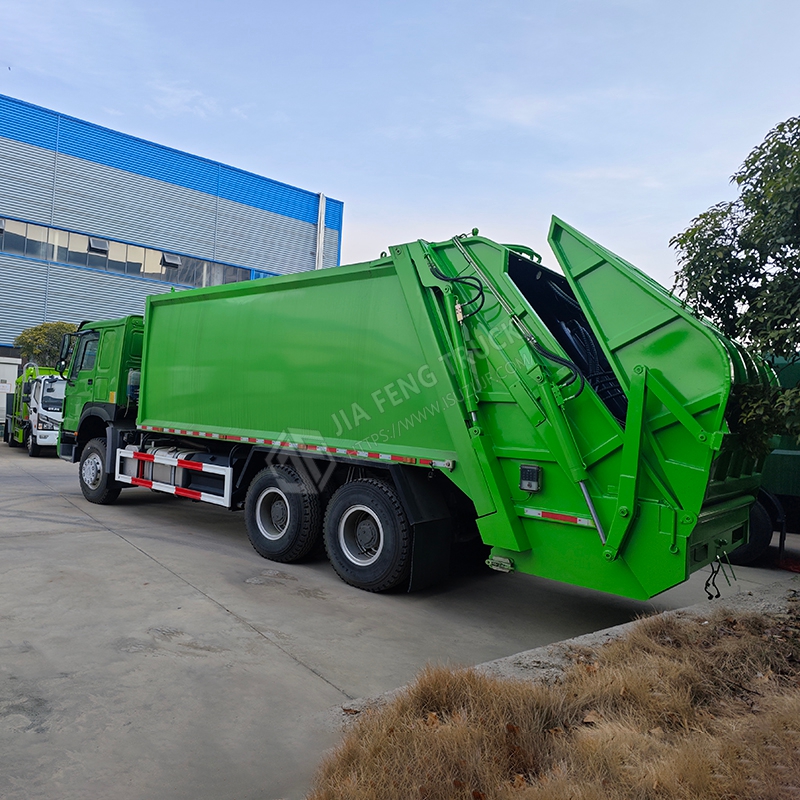

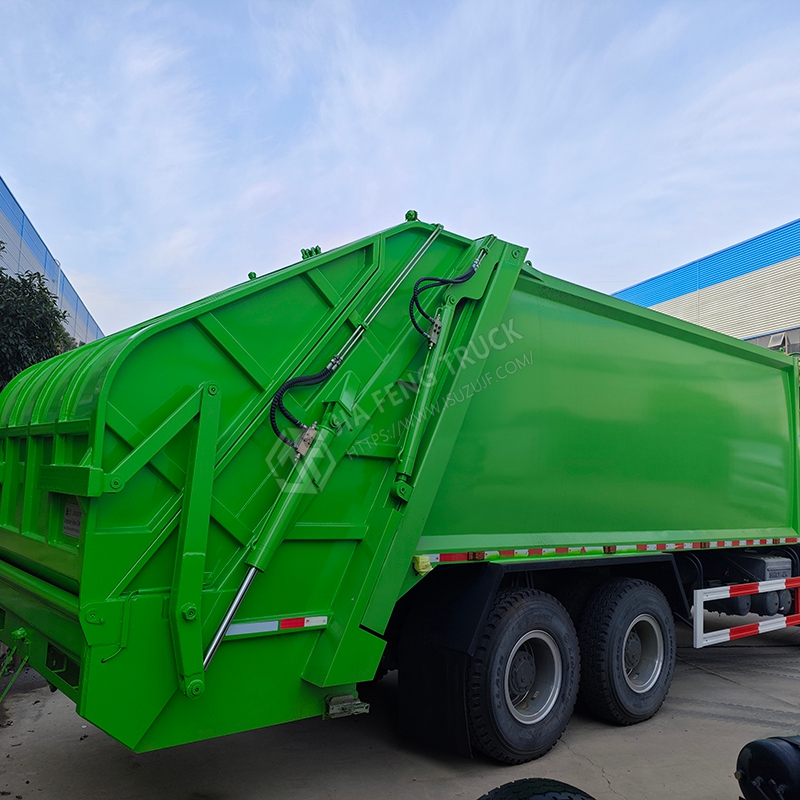

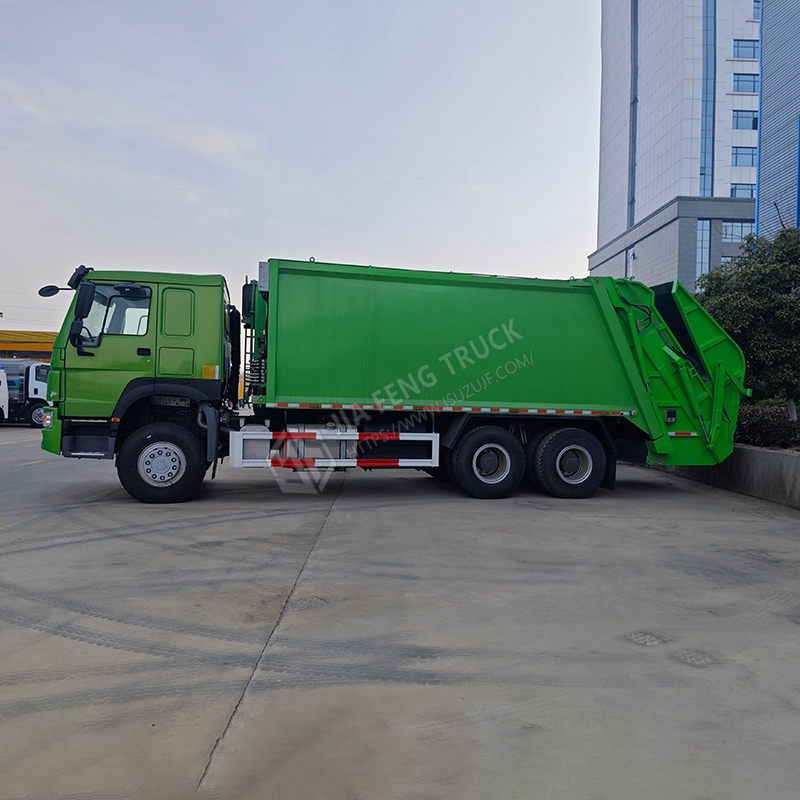

Sinotruk HOWO 6x4 Compactor Garbage Truck
