Vehicle configuration parameters:

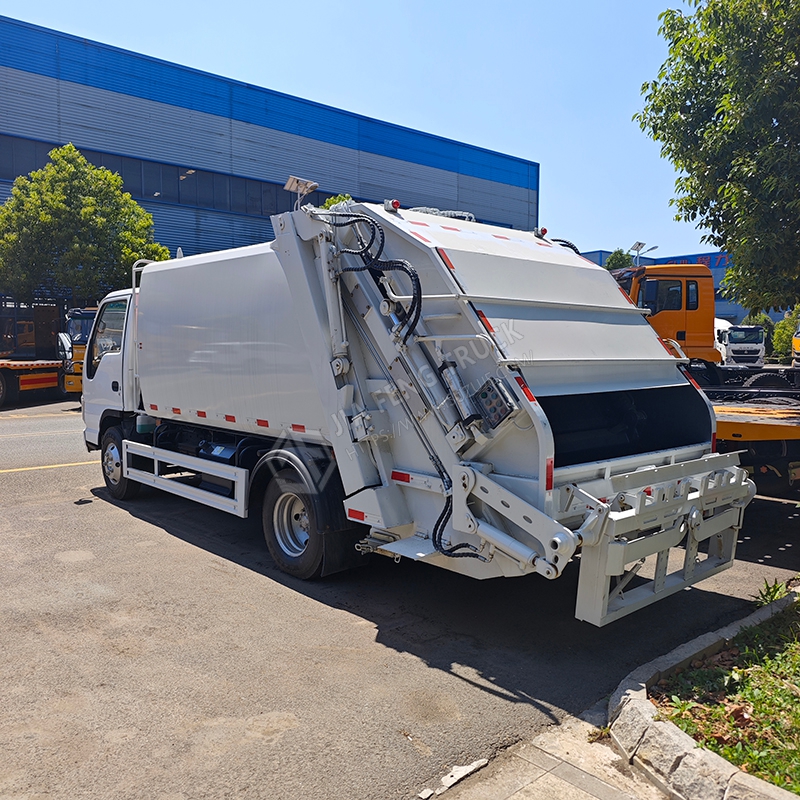

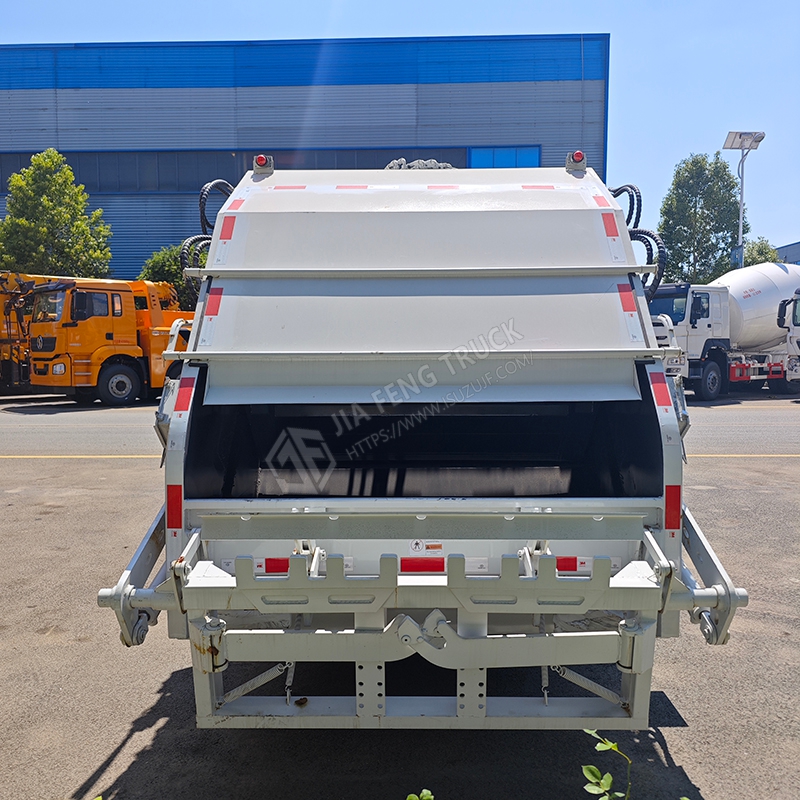

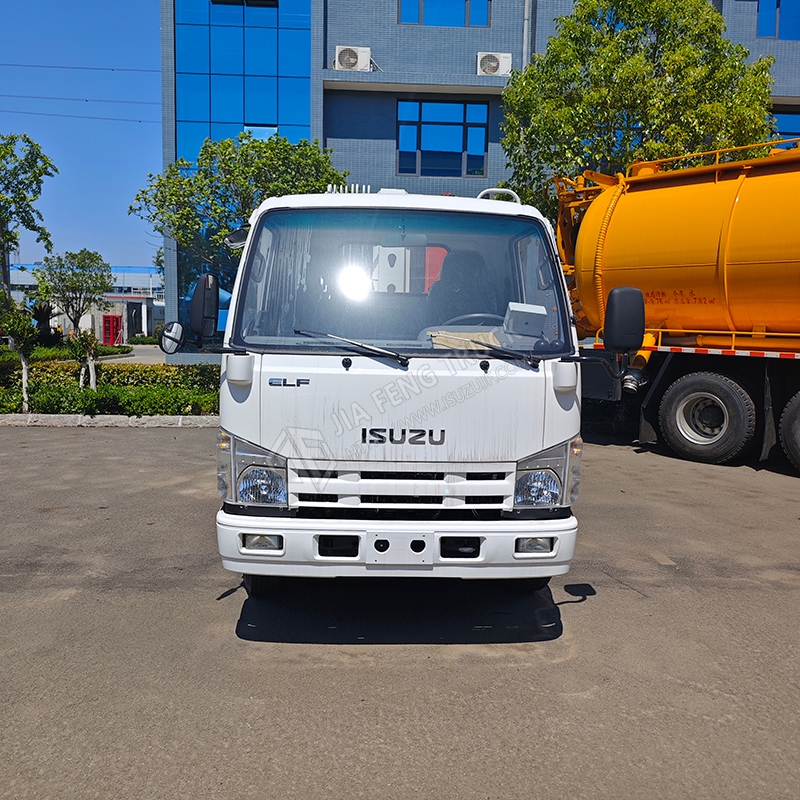

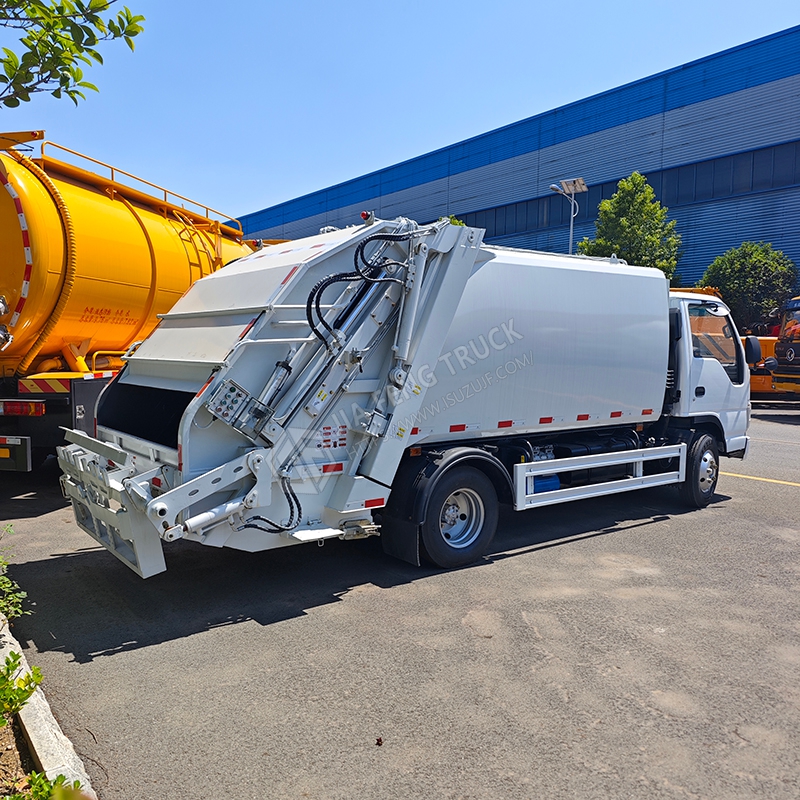

Product Name	Isuzu 8 cubic meter compressed garbage truck
Overall vehicle dimensions (length × width × height)	7355×2320×2750
Total mass	8280 kg
Rated capacity	2135 kg
curb weight	5950 kg
Chassis configuration parameters:
Chassis Model	QL1073BUHAY
Drive form	4×2
wheelbase	3360 mm
Engine Model	4KH1N6MD
Engine power	96kW (Cummins)
Engine horsepower	130 horsepower (Cummins)
gearbox	5 gears
Emission standards	GB3847-2005, GB17691-2018 National VI
fetal	7.50R16LT 14PR
other	Air brakes, ABS, and air conditioning are standard features on other Dongfeng chassis.
Dedicated configuration parameters:
Effective volume of the enclosure	Approximately 8 cubic meters
box shape	New arc
Box material	Q345 manganese steel ( 4 on the sides, 5 on the bottom)
Compression ratio	≥2.5
Effective volume of packing	≥1 cubic meter
Loading cycle time	≤25 seconds
Loading cycle time	≤15 seconds
Avoiding garbage time	≤35 seconds
Control method	Automatic/Manual
Hydraulic system pressure	18 MPa
Multi-way directional valve	Jiangsu 2+3
hydraulic oil pump	Double gear pump
hydraulic cylinder	Jiangsu Hydraulic Cylinder
PTO	Jiashan, Zhejiang
Electrical control system (PLC one-button cycle)	Siemens

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!
