Vehicle configuration parameters:

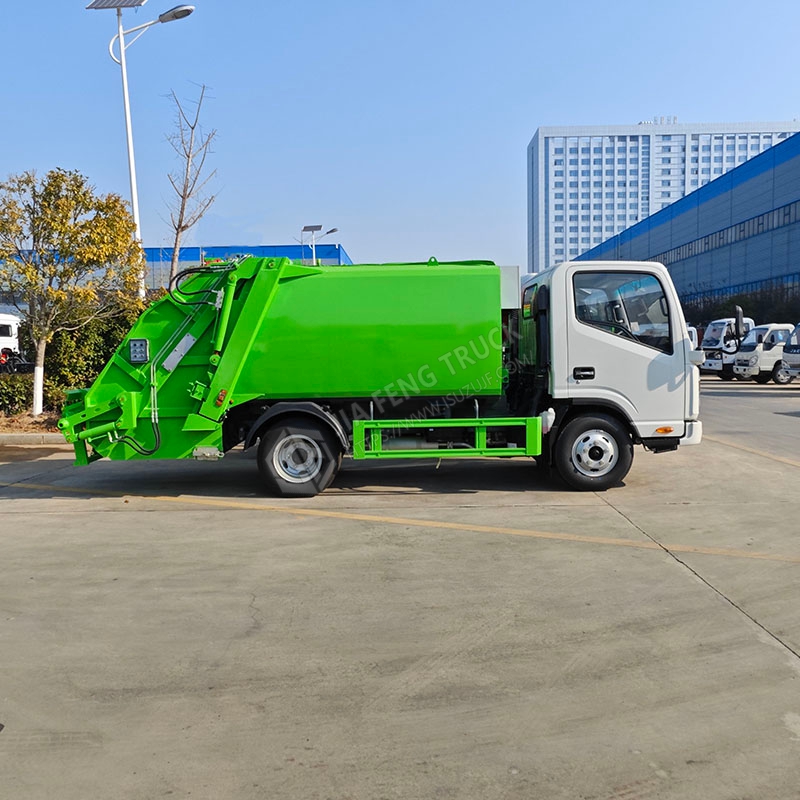

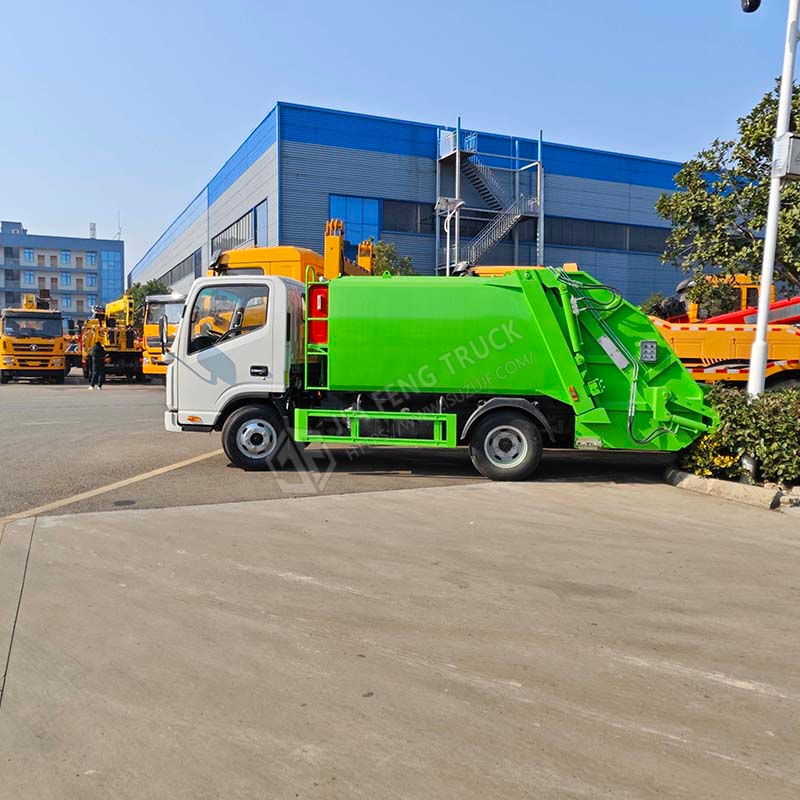

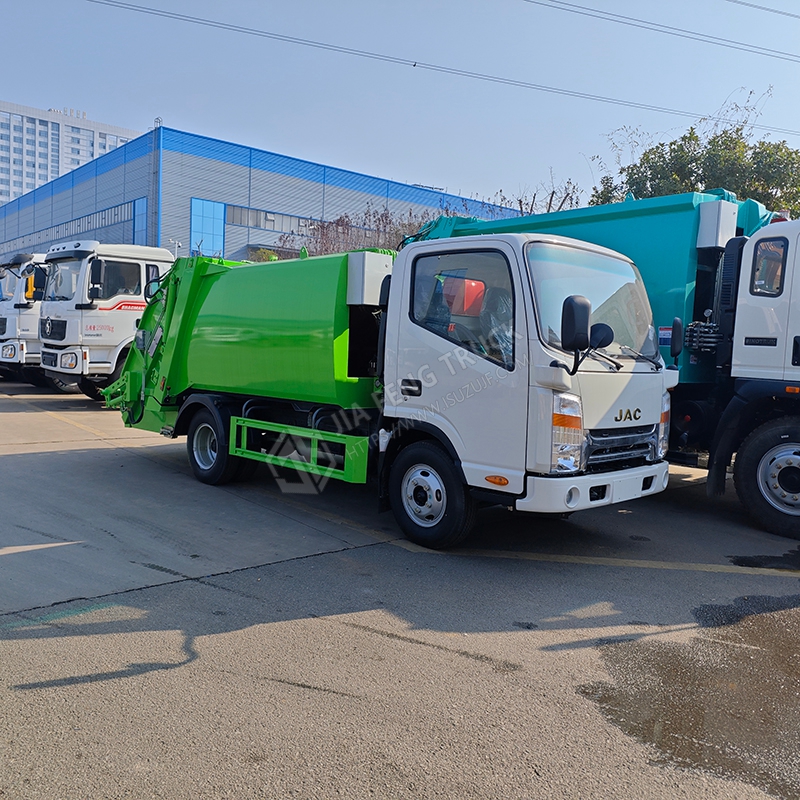

product name	JAC 5 cubic meter compression garbage truck
Overall vehicle dimensions (length × width × height)	5995×2060×2450
total mass	4495kg
Rated contained mass	500kg
curb weight	3865kg
Chassis configuration parameters:
Chassis model	HFC 1045 P23K1B4QZS
Drive form	4× 2
Wheelbase	2850 mm
engine model	D20TCIF15
Engine power	90kW (Cummins)
Engine horsepower	126 HP (Cummins)
gearbox	Shaanxi gear 5th gear
Emission Standards	GB3847-2005, GB17691-2018 Country VI
tire	6.50R16
other	Air-cut brake, ABS air conditioner, standard equipment on other Dongfeng chassis.
Dedicated configuration parameters:
Effective volume of the box	about 5 m³
Box shape	New arc shape
Box material	Q345 manganese steel (side 4, bottom 5)
Compression ratio	≥2.5
Filler effective volume	≥1m³
Loading cycle time	≤25s
Loading cycle time	≤15s
shirk garbage time	≤35s
control method	automatic / manual
Hydraulic system pressure	18MPa
Multi-way directional valve	Jiangsu 2+3
Hydraulic oil pump	Duplex gear pump
Hydraulic cylinder	Jiangsu oil cylinder
Conversion power take-off	Jiashan, Zhejiang
Electronic control system (PLC one-key cycle)	Siemens

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!
