Chassis	Overall size :	12000×2550×3980mm
	Total mass :	25000kg
	Rated load quality :	7120kg
	Curb weight :	17750kg
	Chassis model:	SX1259MB4F1C
	Type:	6×4 , flat-head diesel vehicle
	engine model:	WP8.350E61
	Engine maximum power :	257kW
	Tail gas emissions:	Euro 3
	Wheelbase:	4375+1400mm
Cleaning part	Clean water tank volume:	8m³
	Tank thickness:	8mm
	High pressure pump brand	Yifeng
	Flow volume / pressure	300L/200Bar
	High pressure hose inner diameter	22mm
	High pressure hose length	100m
	nozzle	Ceramic nozzle four-piece set
	Protection System	Low water electronic alarm
absorb dirt	Sewage tank capacity:	15m 3
	Sewage tank cross- sectional shape	round
	Tank thickness	8mm
	Vacuum pump model:	Yifeng DB22
	Vacuum pump flow rate :	3000m³/h
	When the tank is full	≤5min
	suction lift	≥ 20m
	Inlet / discharge valve port diameter	5H / 6H

part	How to lift the tank	Front cylinder lift
	Rear tank door opening method	Hydraulic opening
	Protection System	Four-level protection system ( first -level anti-overflow valve, cyclonic second - level stop valve, anti-overflow cut-off valve electronics Anti-overflow alarm)
	swivel boom	Can be moved forward and backward , up and down , left and right for remote control operation
	sewage suction pipe	16m
Control system	Integrated electric control box, manual / remote control, simple and convenient , low learning cost

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

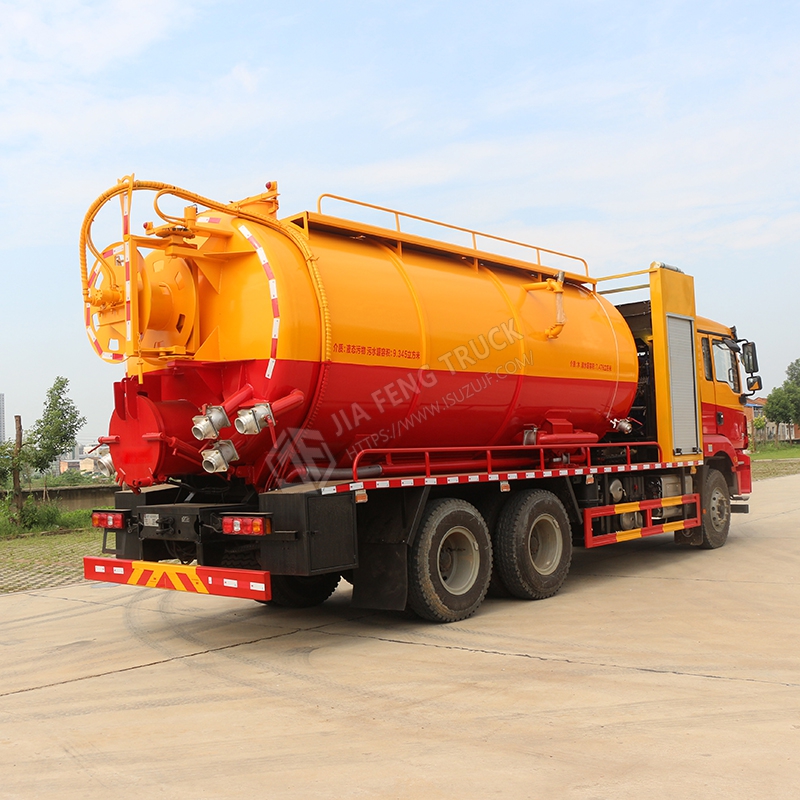

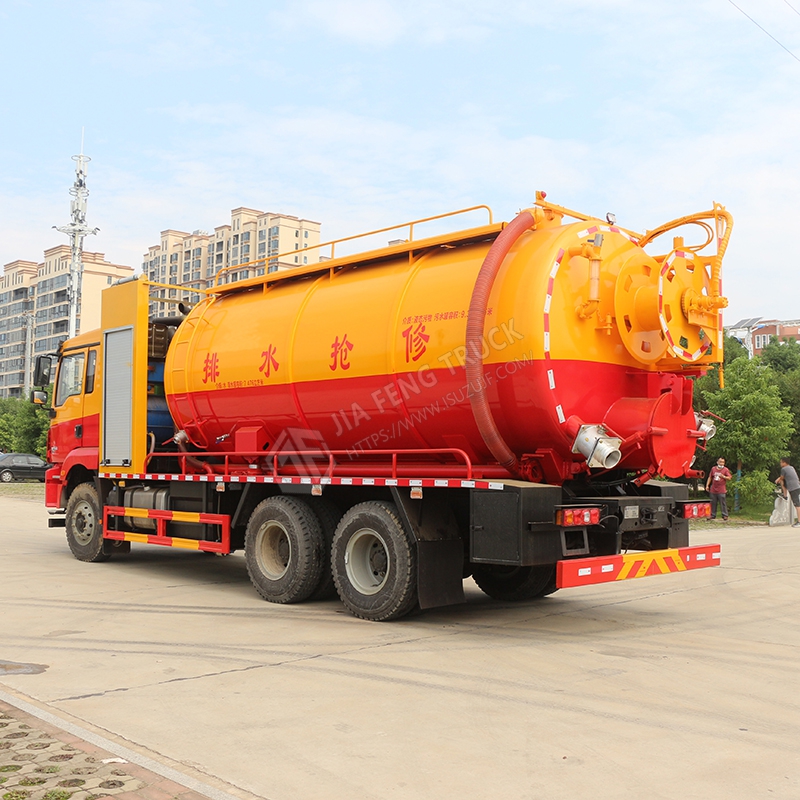

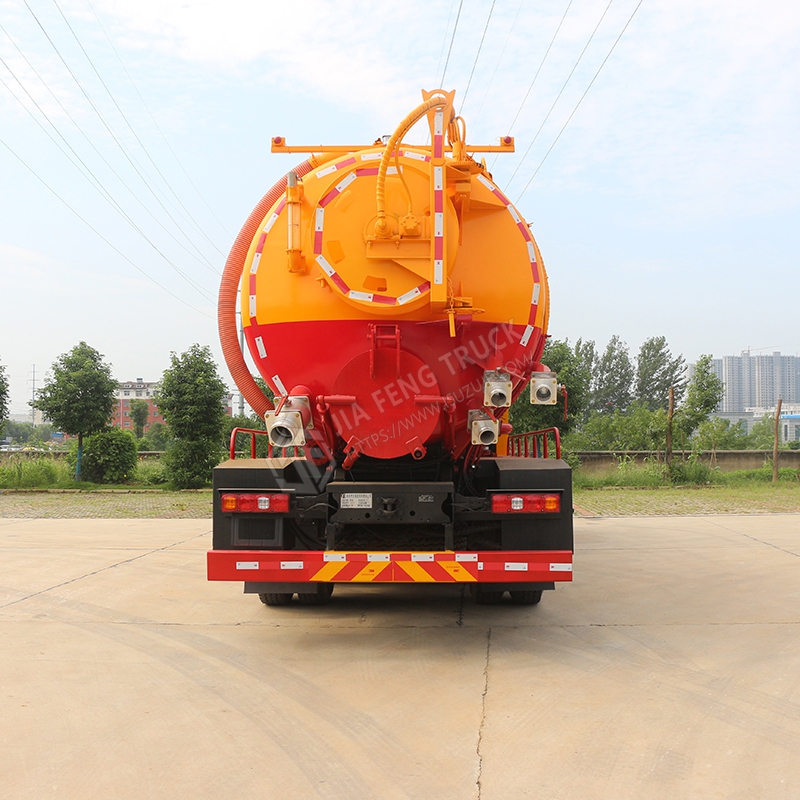

Shacman Automobile Delong M3000 Cleaning and Sewage Suction Truck
