serial number	name	Model, specifications	Belonging system	Remark
1	Car chassis	DFH1180EX8	Chassis	Dongfeng Tianjin 4×2
2	engine	B6.2NS6B2 10		Cummins 210 horsepower, National VI
3	Wheelbase	5000mm
4	Asphalt tank capacity	6 cubic meters		Inner tank volume
4	stone silo	8 cubic meters		V- shaped hopper ( gravity gravity flow )
5	Thickness of insulation layer	50mm		Rock wool insulation
6	Covered in stainless steel	1m		1.2 thick stainless steel plates
7	PTO	Full power take-off		Fully hydraulic power take-off drive, no auxiliary power required
8	Duplex gear pump	GPC4-50-TJHD	Hydraulic system	Tianjin Tianji
9	Proportional valve	EF RD - G 03-160-5-31		Northern Seiki
10	Asphalt pump motor	HZH 05- 110- BD 40		Ningbo Han Bamboo
	Hydraulic pump motor	GM5-10		Tianjin Tianji
11	asphalt pump	QGB 680	Asphalt Spraying System	Shanggui, 950 L/min
12	Number of nozzles	30 pieces	Asphalt Spraying System	The control method is: 1 control 1
13	burner	G20 (200,000 kcal/hour)	Heating system	Riyadh
14	Thermal oil pump	RY32-32-160		Hebei
15	speed sensor	Ni5-G12		Turk, Germany
16	Temperature Controller	Pt100		Shanghai Xinghui

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

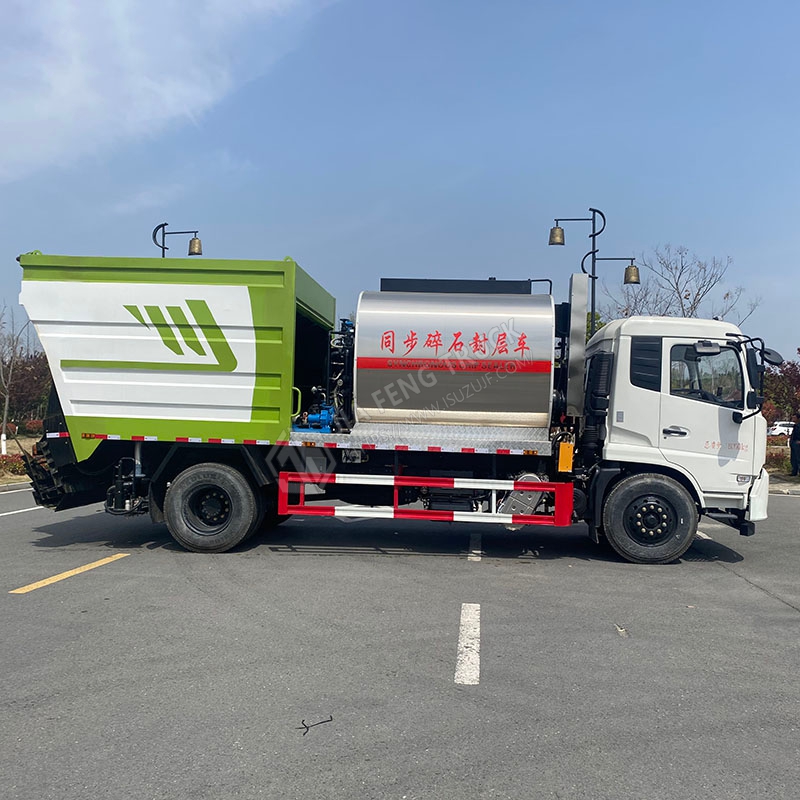

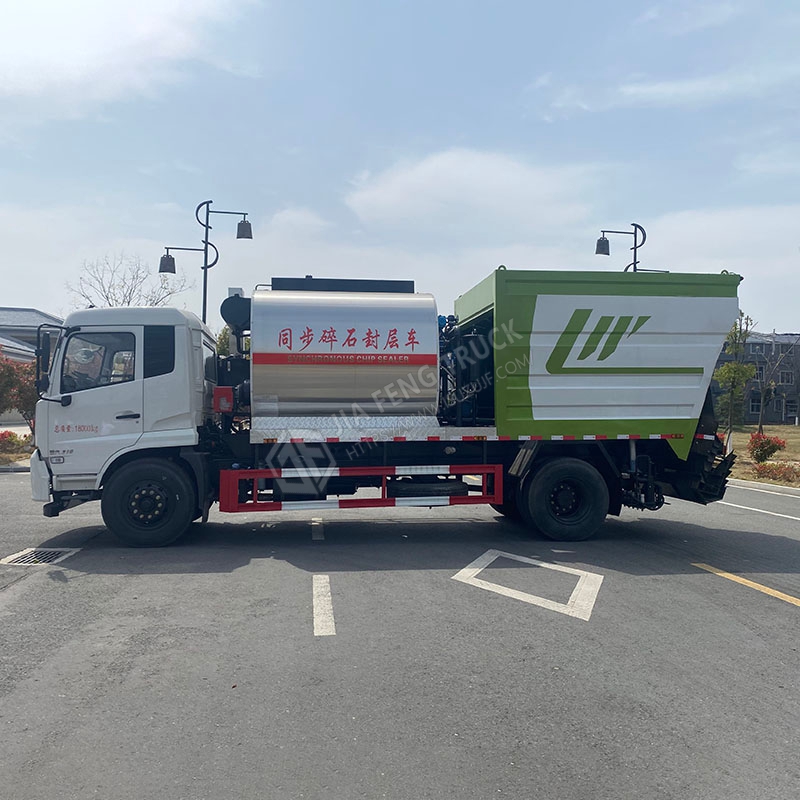

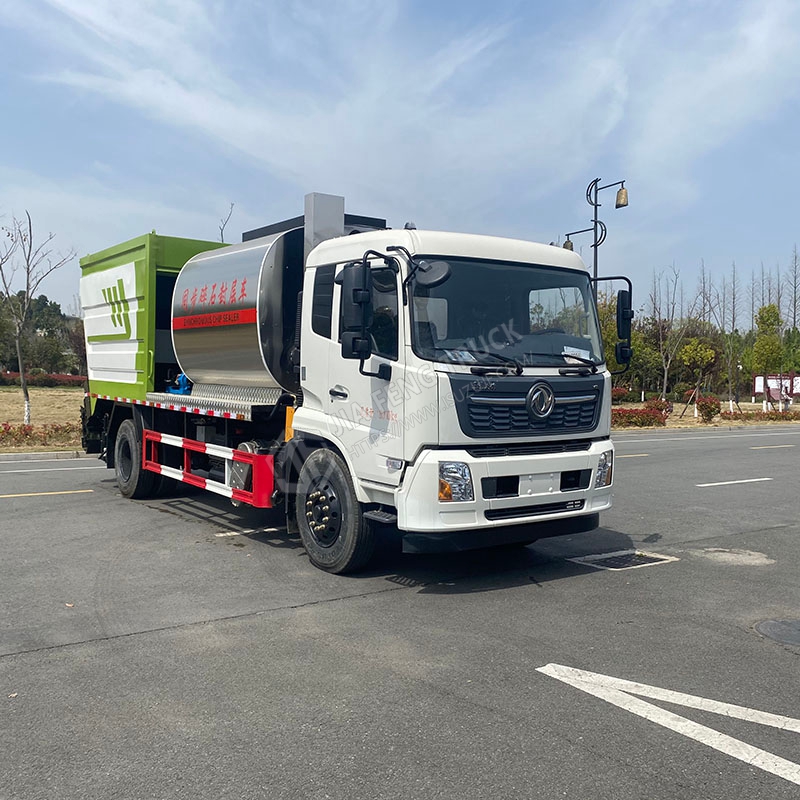

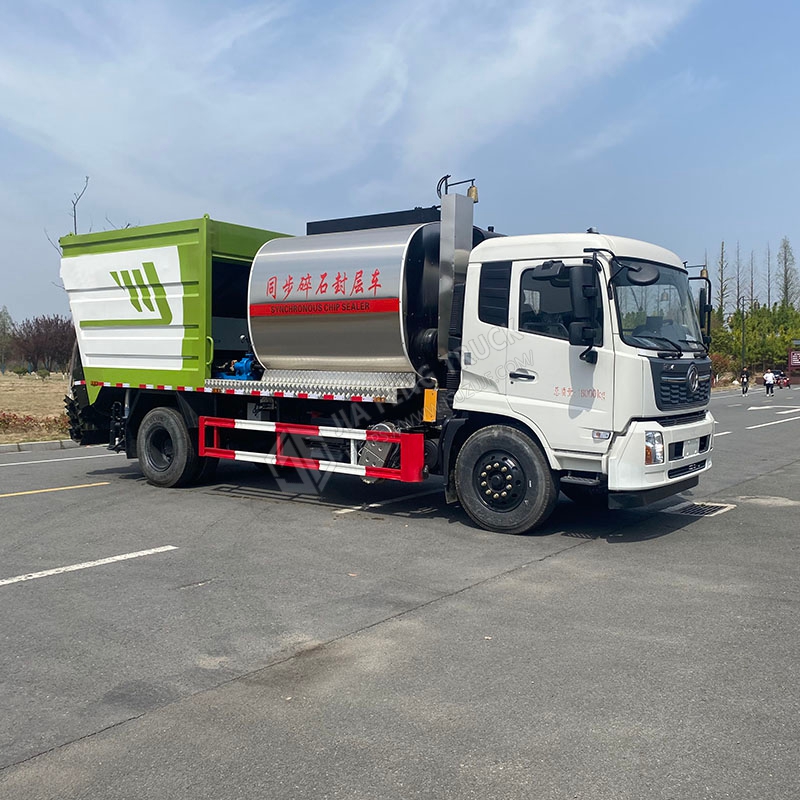

Tianjin Synchronous Stone Chip Sealing Machine
