serial number	name	Model, specifications	Belonging system	Remark
1	Car chassis	ZZ1317N466GF1	Chassis	SINOTRUK HOWO/ 8×4
2	engine	WP8.350E61 MC07H.34-60	Chassis	Weichai has 350 horsepower and MAN has 340 horsepower. National VI
3	Asphalt tank capacity	10 cubic meters	Asphalt tanks, fiber silos, stone silos	Inner tank volume
3	stone silo	14 cubic meters		internal lift
4	Fiber bin	1T
5	Thickness of insulation layer	50mm		Rock wool insulation
6	Covered in stainless steel	1mm		1 thick stainless steel plate
7	mixer	stand mixer		Motor imported from the United States
8	PTO	Full power take-off	Source of work motivation	Spraying can start from zero
9	variable piston pump	A10 series	Hydraulic system	Germany Rexroth
10	Asphalt pump motor	HZH05-110BD40		Ningbo
11	Hydraulic valve system	CLW520-2		Germany Rexroth
12	asphalt pump	K244 American Viking/TGGP185-125 Belgium	asphalt sprinkler system	Available in USA or Belgium
13	Number of nozzles	64 imported seals	asphalt sprinkler system	The control method is: 1 control 1
14	burner	G20 (200,000 kcal/hour)	Heating system	Two imported from Italy
15	Thermal oil pump	RY32-32-160		Hebei
16	Thermal oil pump motor	G5-08		Tianjin Tianji
17	Stone spreading method	gravity flow	Stone chip spreading system	16-way material door (computer controlled)
18	stone door control	Electric push rod fine adjustment	Stone chip spreading system	Well-known domestic brands
19	Fiber spreading system	Two sets of spreaders		Cheng Li
20		32 cutters		Imported blade
twenty one		drive motor		Eaton, USA
twenty two	Control system method	Cab touch screen computer control + rear working platform control (standby)	Control System	The control system adopts: German Siemens modular design, with faster and smoother operation and low failure rate. Optional special controller for construction machinery is available.
twenty three	speed sensor	Ni5-G12		Turk, Germany
twenty four	Temperature Controller	Pt100		Shanghai
25	monitor	set		Domestic

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

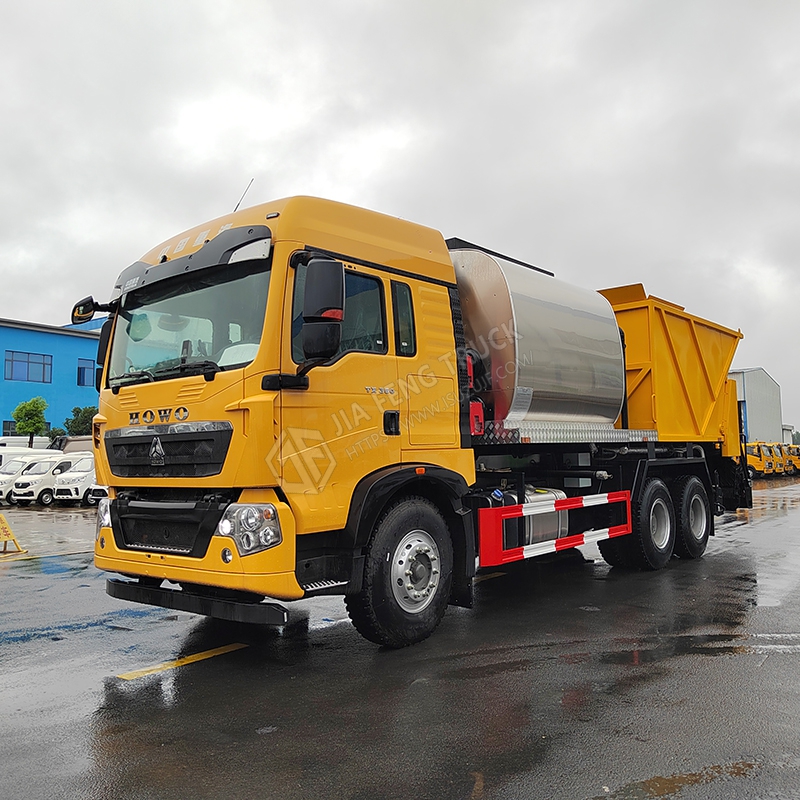

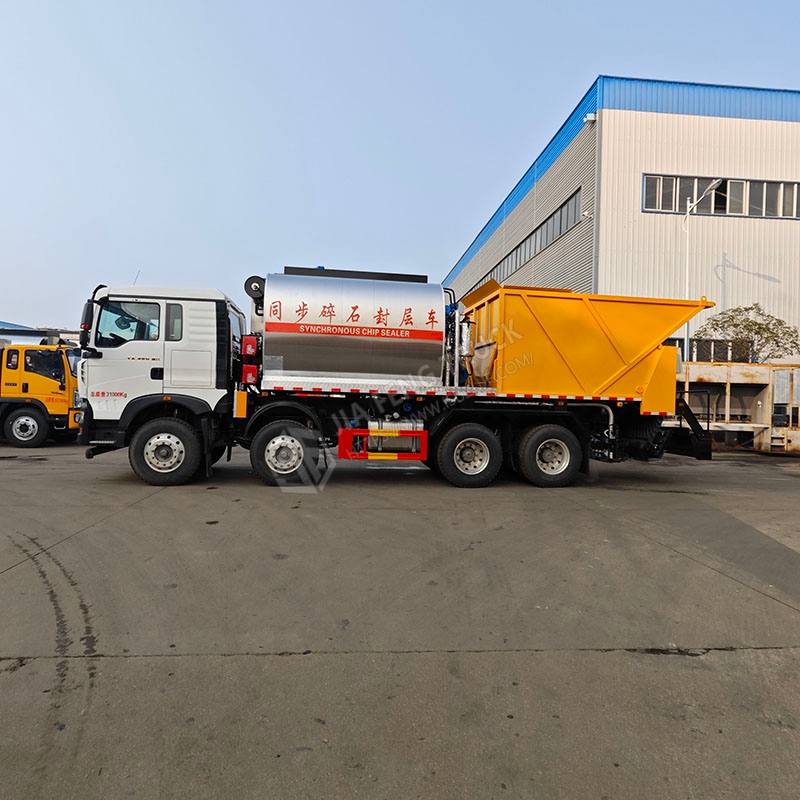

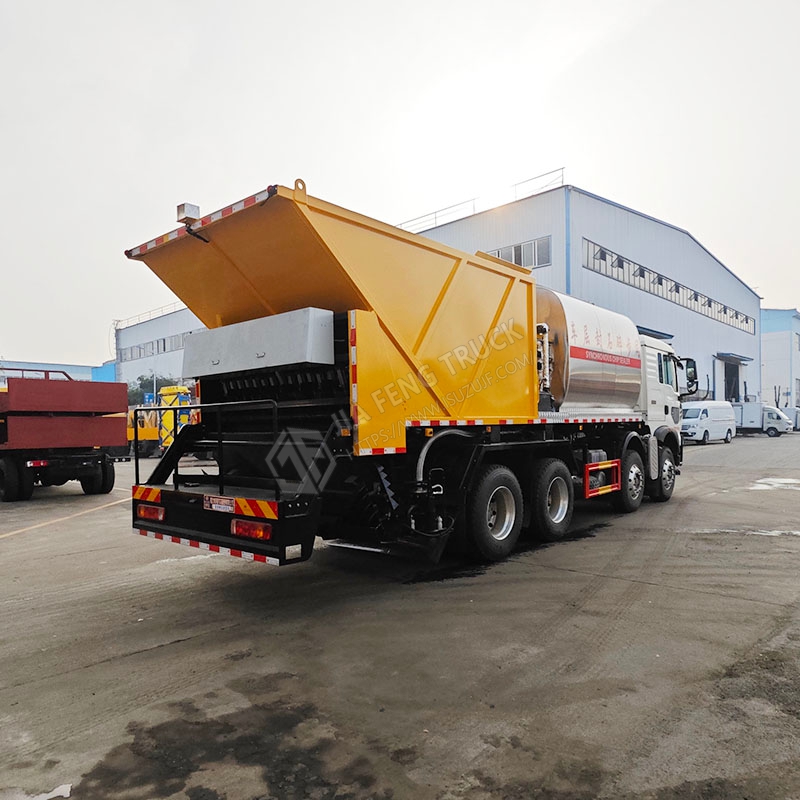

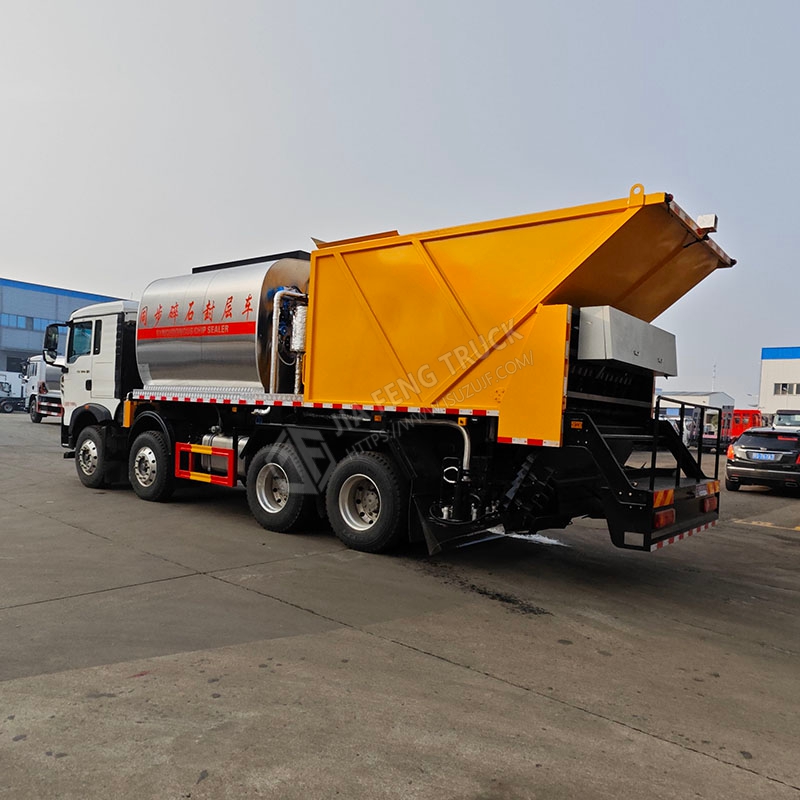

Sinotruk 20-cubic-meter Synchronous Stone-Crushing Seal Coat Truck
