Serial Number	name	Technical parameters
1	Product Name	Asphalt pavement hot recycling repair vehicle
2	Product Model	CLW5311TXBALY
3	Yield	10 (T/h)
4	Fuel consumption	20-25 (L/h)
5	Silo capacity	12 (m³)
6	Asphalt tank	3 (m³)
7	Heating method	Thermal radiation + air heating
8	Heating fuel	diesel fuel
9	Asphalt tank burner	G10 (100,000 kcal/hour)
10	Stirred vessel burner	G20 (200,000 kcal/hour)
11	Mixing kettle	Fully enclosed dual-shaft forced mixing
12	Install driver	Hydraulic drive
13	Temperature control	Intelligent control
14	Heat preservation function	Temperature drop ≤5℃
15	Asphalt filling	Block asphalt/liquid asphalt
16	New material addition ratio
17	Discharge method	Spiral discharge
18	Agitator Lift	Front hydraulic jacking, angle ≥30°
19	Dust removal methods	Water dust removal

1	chassis	Sinotruk H OWO 8×4
2	Chassis and engine	Weichai WP8.350E62
3	Engine power/speed	257 (KW) / 2100 (r/min)
4	Emission standards	National VI
5	wheelbase	1800+3000+1400 (mm)
6	Axle load	6500/6500/18000 dual-axis assembly (kg)
7	Top speed	89km/h
8	tire	11.00R20 steel radial tires (including 13 spare tires)
9	Reversing camera	Sinotruk H OWO brand new original factory chassis
10	External dimensions	9620×2550×3400 (mm)
11	curb weight	19000 (kg)
12	Total mass	31000 (kg)
13	Asphalt tank burner	G10 (Riyadh)
14	Stirred vessel burner	G20 (Riyadh)
15	dynamo	8kw
16	generator hydraulic motor	0000258102F (Tianji)
17	Asphalt pump	LCB-3A (Taicang Gear Pump)
18	Thermal oil pump	32-32-160 (Botou)
19	Mixer motor	HAAZFM90/60W
20	speed reducer	PMB.7YR120 (PMP Gearbox)

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

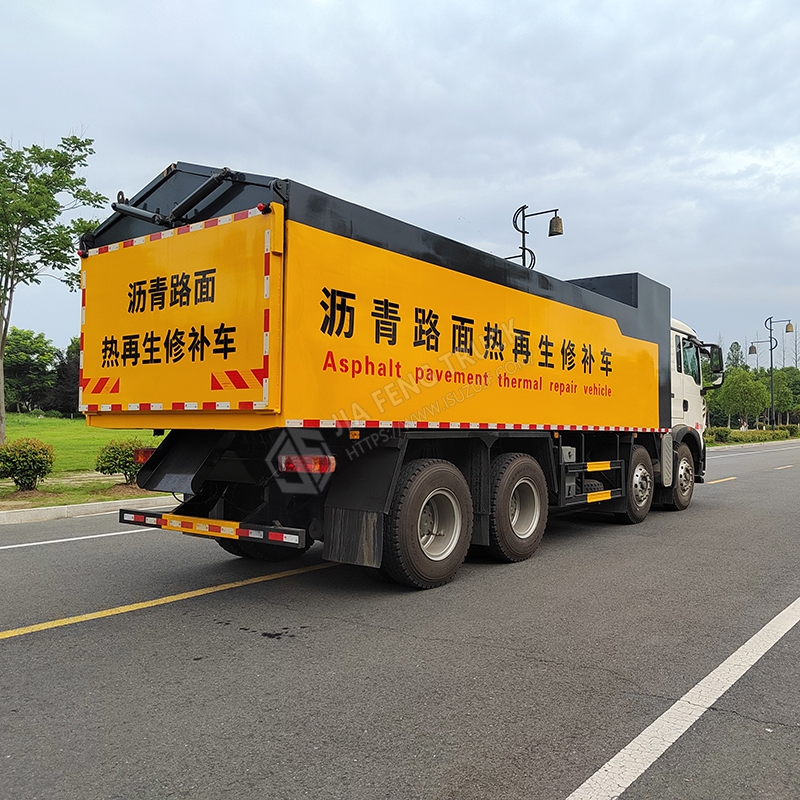

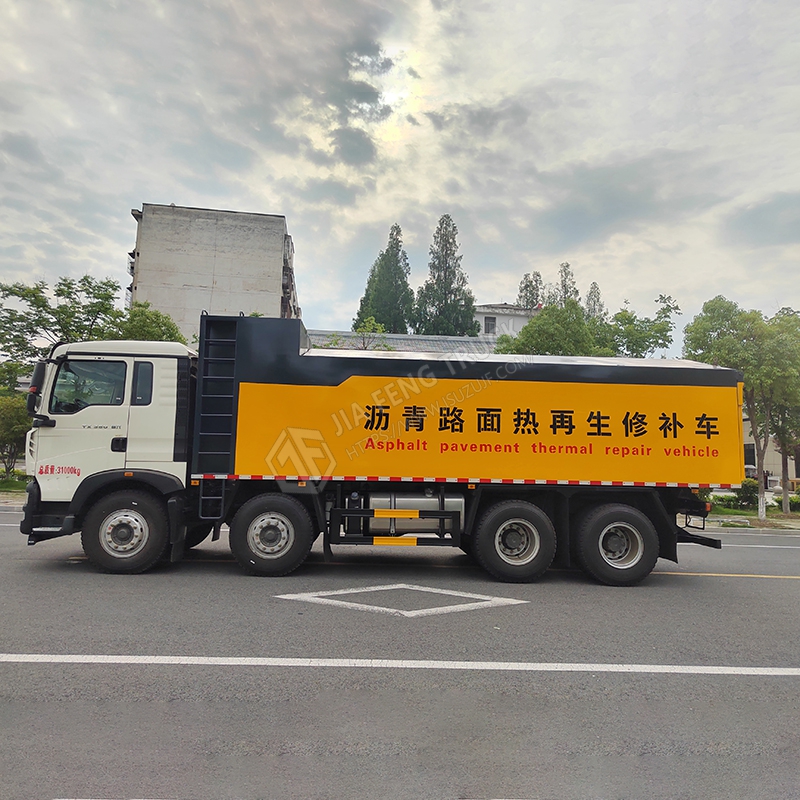

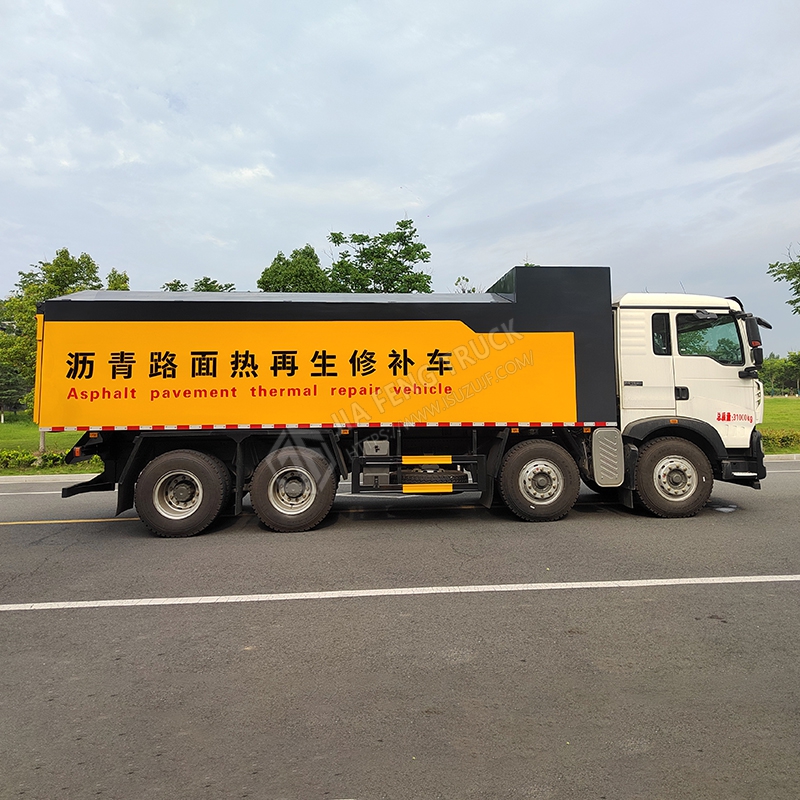

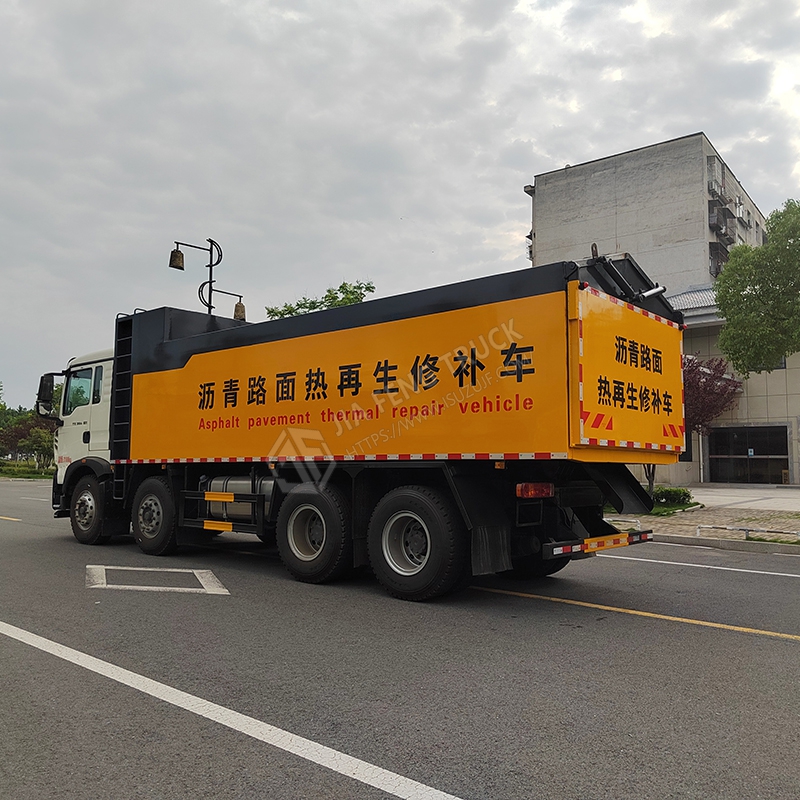

Sinotruk HOWO 8x4 Hot Recycling Asphalt Pavement Repair Truck
