Serial Number	name	Model, Specifications	Belonging System	Remark
3	Asphalt tank capacity	8 cubic meters	Asphalt tank + stone silo	Inner tank volume
3	Stone silo	12 cubic meters		Internal Shadow Concealed Lift
4	Insulation layer thickness	50 mm		Rock wool insulation
5	Stainless steel outer casing	1.2mm		1.2mm thick stainless steel plate
6	power take-off	Full- power power take-off	Source of motivation for work	Spraying can start from zero
7	Triple gear pump	CPC4-50-20-16	Hydraulic system	Tianjin
8	proportional valve	EFBG-03-160-HF		Taiwan
9	Asphalt pump motor	05-130 - BD31		Ningbo
10	Asphalt pump	QGB 950	asphalt Spraying system	Still expensive, 950 L/min
11	Number of nozzles	32	asphalt Spraying system	The control method is: 1 control 1
12	burner	G20 (200,000 kcal/hour)	Heating system	Two Italian Riello diesel burners
13	Thermal oil pump	RY 25-25-160		Hebei
14	Thermal oil pump motor	380V-2.2KW-2 poles		Anhui
15	Stone spreading method	Gravity flow	Stone chip spreading system	16-way material gate (computer controlled)
16	Control system method	Cab touchscreen computer control + rear work platform control (backup)	control system	The control system adopts a modular design from Siemens, Germany, resulting in faster and smoother operation and a lower failure rate.
17	speed sensor	Ni5-G12		Türke, Germany
18	Temperature controller	WZP-230		Shanghai
19	dynamo	5.5 KW Honda gasoline generator	Power System	joint venture

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

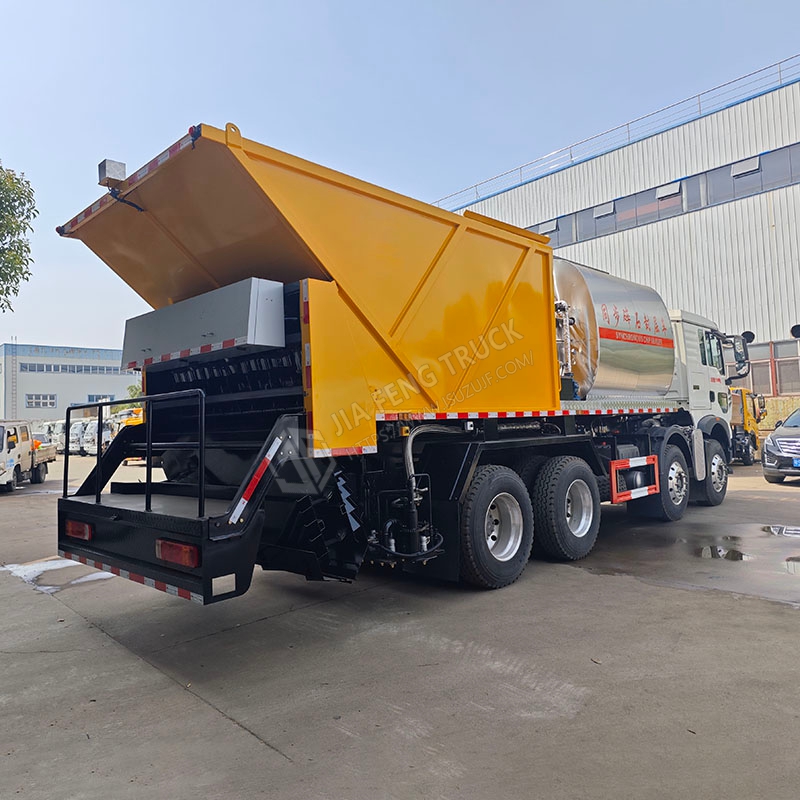

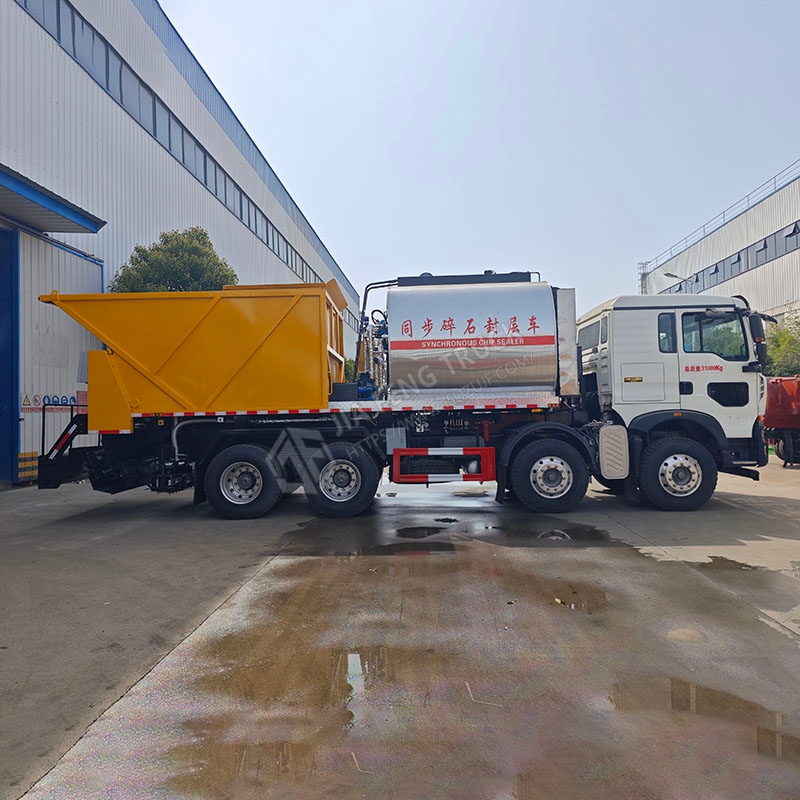

Sinotruk HOWO 8x4 Gravel Synchronous Sealing Truck
