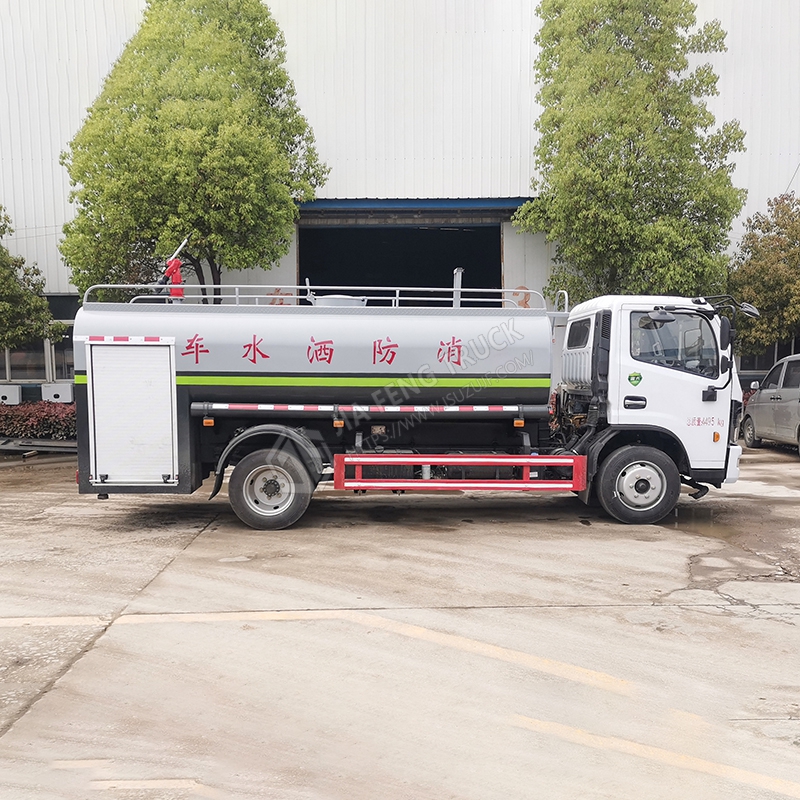

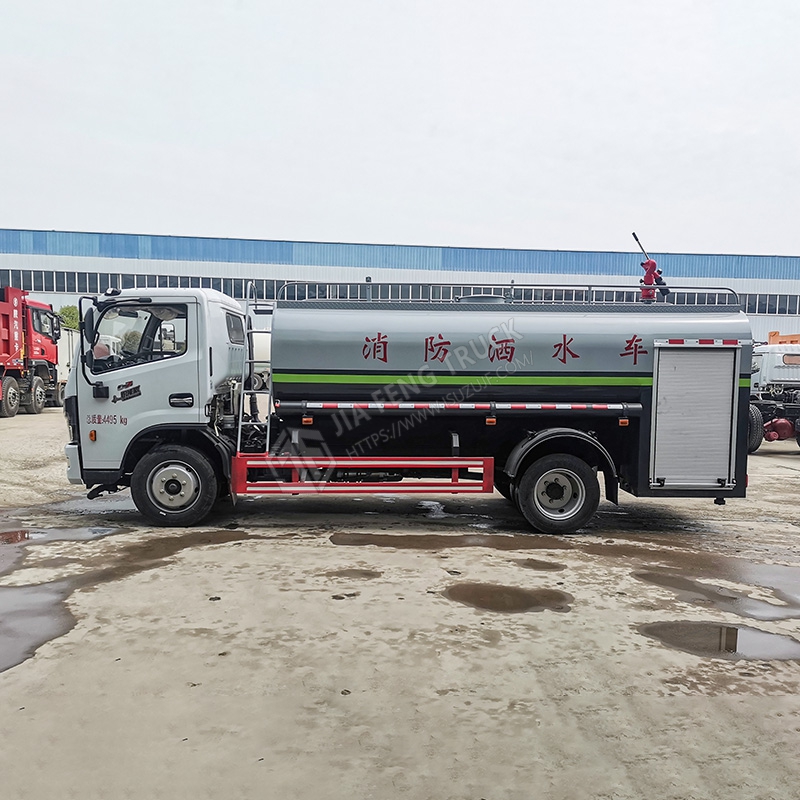

Quality parameters

Rated loading mass (kg)

7000

Axle load(kg)

4350/7645

Vehicle curb weight (kg)

4800

Maximum total mass (kg)

11995

Size parameters

Length(mm)

6830

Wheelbase (mm)

3800

Width (mm)

2350

Height(mm)

2550

front overhang

1130

Rear suspension

1900

Front track

1745

rear wheelbase

1630

approach angle

20

departure angle

14

Other parameters

Maximum speed (km/h)

103

Allowed number of   passengers

3

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

245/70R19.5,8.25R20

※Chassis

Chassis model

EQ1125SJ8CDC

Manufacturer

Dongfeng Motor Co., Ltd.

※   Cab configuration

air conditioner

Heating and cooling air conditioning

central locking

have

electric glass

have

remote key

have

Directional assistance

have

Multifunction steering wheel

have

daytime running lights

have

air brake

have

※engine

model

YCY30165-60

Power(kw)/horsepower

121/1 65

Manufacturer

Guangxi Yuchai Machinery Co., Ltd.

Displacement (ml)

2970

Rated speed (r/min)

2800

Maximum torque (N ∙ m)

500

Maximum torque speed (r/min)

1400-2200RPM

Emission Standards

GB3847-2005, GB17691-2018 Country VI

※Transmission

brand

Wan Liyang

model

6TS55 gearbox

※other

brake

air brake

Voltage (V)

twenty four

turn

power steering

Clutch

Air pressure servo assist

select gear

Double cone synchronizer

ABS manufacturers

ABS/ASR-24V-4S/4M

ABS model

Xiangyang Dongfeng Longcheng Machinery Co., Ltd.

※Tank   body

Water tank capacity (L)

7200 L

Tank material

Q235 carbon steel

Thickness(mm)

4

shape

Square and round tank

structure

Welded

Anti-sway board

vertical

manhole

One DN460 manhole with quick locking/opening   device

Materials and craftsmanship

◇High-pressure gas leak testing after   the tank is formed, so that the tank has the characteristics of high   strength, stable center of gravity, stable and safe vehicle transportation;

◇The tank body is automatically welded   by gas shielded welding at the welding station to ensure the original quality   of the tank weld seam.

◇The length of the tank is welded with   one-time formed integral longitudinal beams to ensure the strength of the   tank.

◇Carry out overall shot peening   process to eliminate weld stress and remove overall rust.

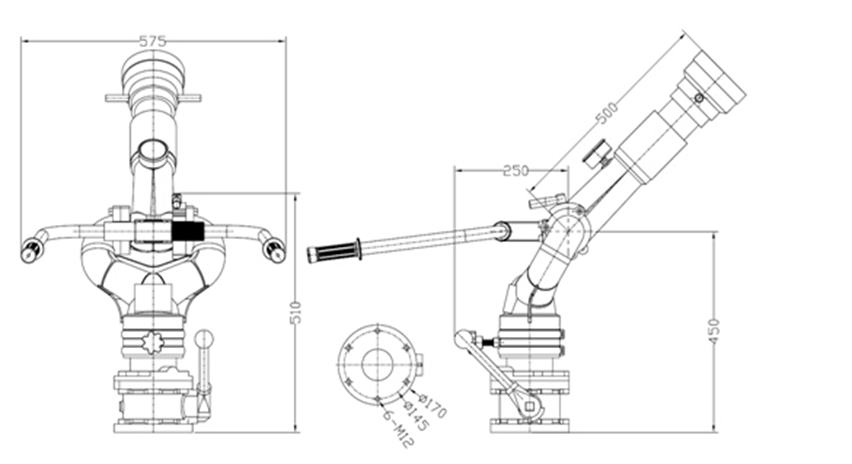

※Fire   cannon

model

PS 30W fire water cannon

Manufacturer

Chengdu West Fire Machinery Co., Ltd.

Range(m)

Water≥50

Flow (L/s)

3 0

Pressure (MPa)

≤0.7

Pitch rotation (°)

-30～+70

Horizontal rotation (°)

0～360

Weight (kg)

≤25

Length, width and height (mm)

1000 ×340×600

Features

◇Long range, concentrated water flow,   and large protection area.

◇The operation is flexible and   convenient, and the gun body can rotate horizontally and upwardly.

◇Direct flow and spray can be used   when spraying.

◇The main specifications and   performance parameters are in line with the requirements of the People's   Republic of China standard GB19156-2003 "General Technical Conditions   for Fire Cannons".

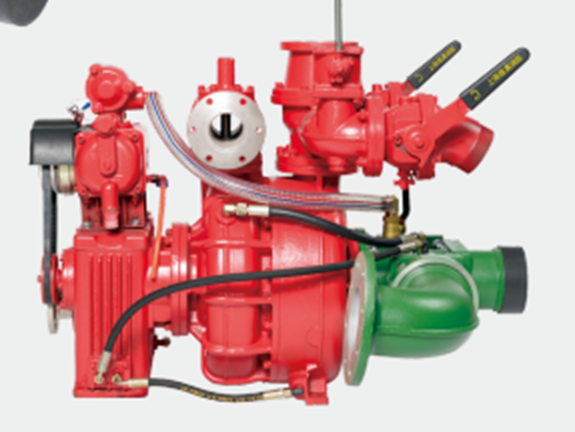

※Fire   Pump

model

CB10/30-RS normal pressure vehicle fire pump

Manufacturer

Shanghai Rongshen Fire Equipment Co., Ltd.

Water diversion method

Circular water diversion

Installation method

Rear mounted

Maximum vacuum degree (KPa)

≥85

Outlet pressure   (Mpa)

≥1.0

7m deep suction time (seconds)

43.6

Vacuum drop value within 1 minute (MPa)

<1.5

Working condition 1

Flow (L/s)

30

Outlet pressure (MPa)

1.00

Rated speed (r/min)

3070±50

Shaft power (kw)

50

Suction depth (m)

3

Working condition 2

Flow (L/s)

twenty one

Outlet pressure (MPa)

1.30

Rated speed (r/min)

33 4 0±50

Shaft power (kw)

55.2

Suction depth (m)

3

Working condition 3

Flow (L/s)

1 5

Outlet pressure (MPa)

1.00

Rated speed (r/min)

3 000 ±50

Shaft power (kw)

38.6

Suction depth (m)

7

Features

◇Excellent   performance, high efficiency, compact structure, beautiful appearance, simple   operation, convenient maintenance, etc.

◇The   pump casing adopts the guide vane type, and the impeller adopts a balance   ring and balance hole structure, which greatly reduces the axial force and   radial force and increases the service life.

◇All   performance indicators comply with GB6245-2006 standards and passed the type   test of the National Fire Equipment Quality Supervision and Inspection   Center.

◇It is   an upgraded product of the current domestic fire pump and is comparable to   similar foreign products.

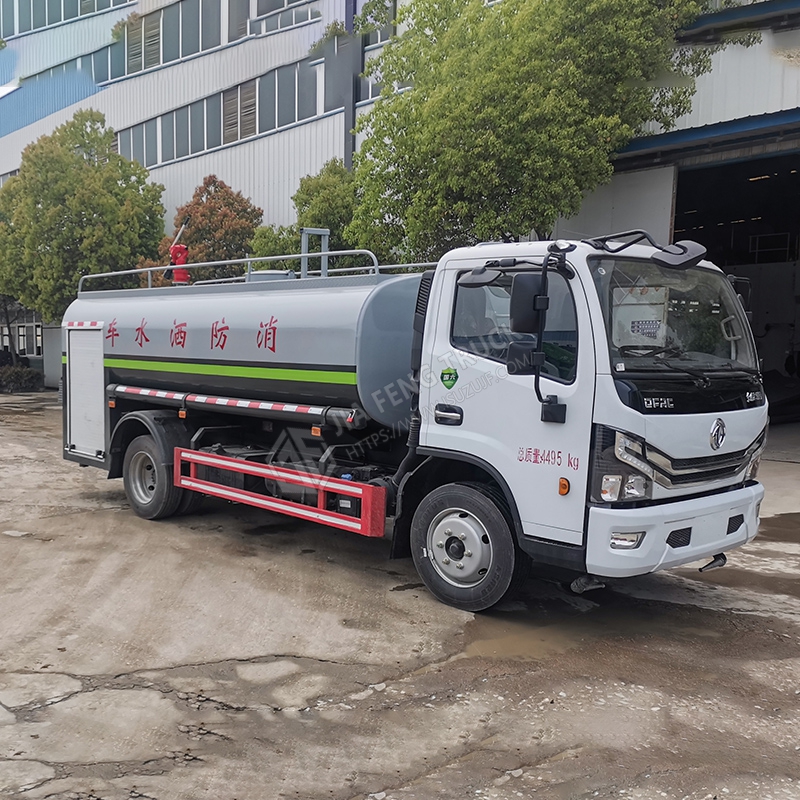

※Forward   thrust ( the following pictures are for reference only )

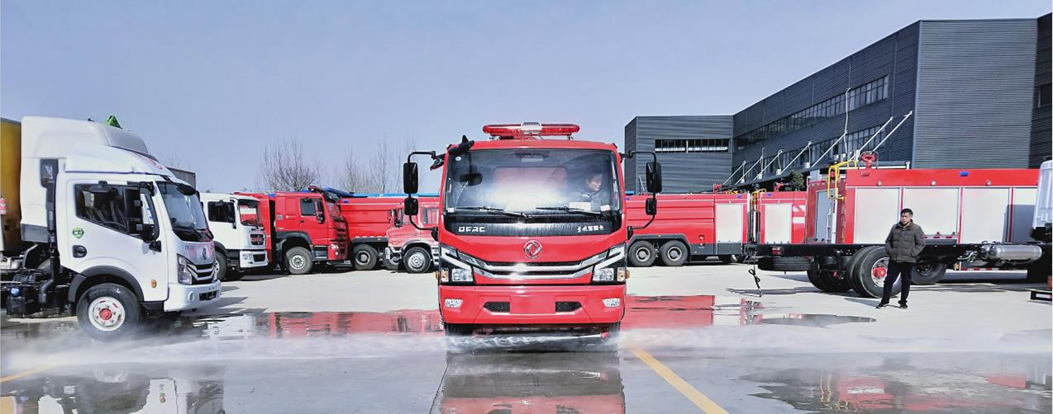

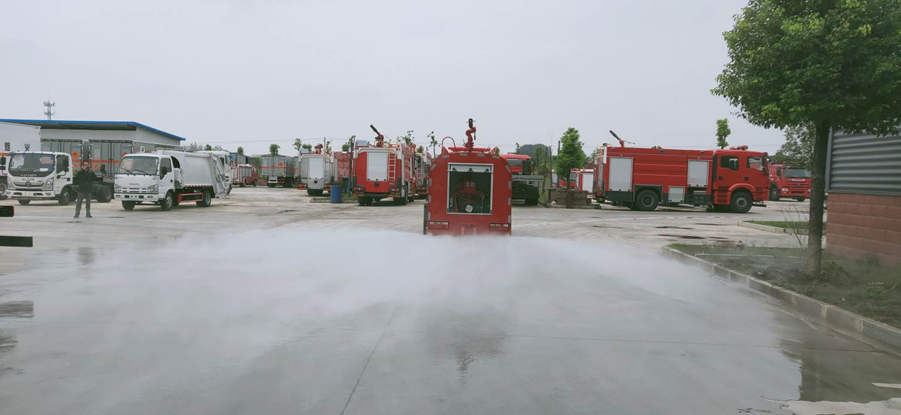

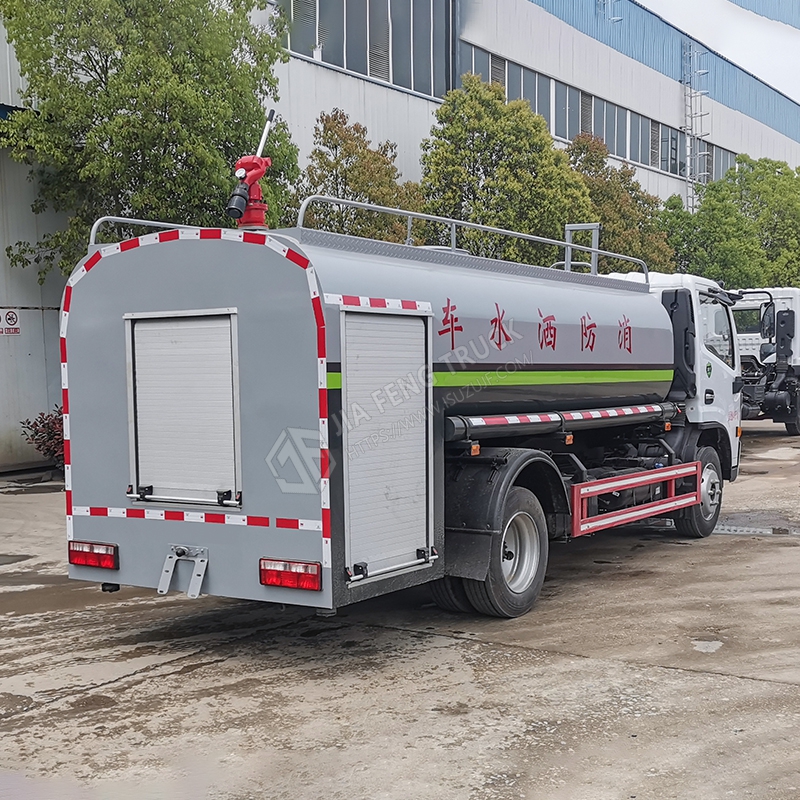

※Sprinkle   afterwards
