※Basic technical parameters of the vehicle :
Quality parameters	Rated loading mass (kg)	10090	Axle load (kg)	6500/11500
	Vehicle curb weight (kg)	7780
	Maximum total mass (kg)	1 8000
Size parameters	Length(mm)	8250	Wheelbase (mm)	3950
	Width (mm)	25 5 0
	Height(mm)	3 150
	front overhang	1 335	Rear suspension	2 415
	Front track	1 960	rear wheelbase	18 55
	approach angle	1 5	departure angle	12
Other parameters	Maximum speed (km/h)	105	Allowed number of passengers	2, 3 (including driver)
	Number of leaf springs	8/10+7	Drive form	4×2
	Number of tires	6	Tire specifications	10.00R20, 275/80R22.5 18PR
※Chassis
Chassis model			QL1180JQFRCY
Manufacturer			Isuzu ( China ) Engine Co., Ltd.
※ Cab configuration
air conditioner	Heating and cooling air conditioning		central locking	have
electric glass	have		air brake	have
Directional assistance	have
※engine
model	4HK1-TCG60		Power(kw)/horsepower	1 51 /2 1 0
Manufacturer	Isuzu ( China ) Engine Co., Ltd.		Displacement (ml)	5193
Rated speed (r/min)			2300
Maximum torque (N ∙ m)			720
Maximum torque speed (r/min)			1600
Emission Standards			GB3847-2005, GB17691-2018 Country VI
※Transmission
brand			Eighth gear
※other
brake			air brake
Voltage (V)			twenty four
turn			power steering
ABS			have
※Tank body
	Water tank capacity (L)	10000-12000	Tank material	Q235 carbon steel
	Thickness(mm)	4	shape	Square and round tank
	structure	Welded	Anti-sway board	vertical
	manhole	One DN460 manhole with quick locking/opening device
Schematic diagram of tank structure	(1) Head (2) Upper guardrail (3) Tank mouth (4) Ladder (5) Lifting lugs (6) Support (7) Sub-beam (8) Barrel (9) Gun barrel (10) Wave-proof partition (11) Measuring tube
Materials and craftsmanship	◇High-pressure gas leak testing after the tank is formed, so that the tank has the characteristics of high strength, stable center of gravity, stable and safe vehicle transportation; ◇The tank body is automatically welded by gas shielded welding at the welding station to ensure the original quality of the tank weld seam. ◇The length of the tank is welded with one-time formed integral longitudinal beams to ensure the strength of the tank. ◇Carry out overall shot peening process to eliminate weld stress and remove overall rust.
※High pressure water pump (standard configuration)
	model	80QZ60/90N(S)
	Manufacturer	Suizhou Yifeng Pump Industry Co., Ltd.
	flow	60 m3/h	Lift(m)	90
	Self -priming height (m)	6.5	Self-priming time (m in/8m)	1
	Shaft power(KW)m	22.5	Input shaft speed (min)	1180
Features	a self-priming centrifugal pump with a speed increase box . It is mainly composed of a pump body, impeller, mechanical seal, shaft, speed increase box and other components. ◇ The power required for pump operation is directly provided by the car engine through the power take-off . As a ground pumping station, it can also be driven by a motor or diesel engine. ◇When the water source contains sediment and debris, the inlet of the suction pipe should be placed in the mesh cover. The total area of the mesh cover's through holes should be greater than 300cm2, and the mesh diameter should be less than 6mm. ◇The pump shaft seal adopts mechanical seal, so the pump operates reliably and has a long life.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

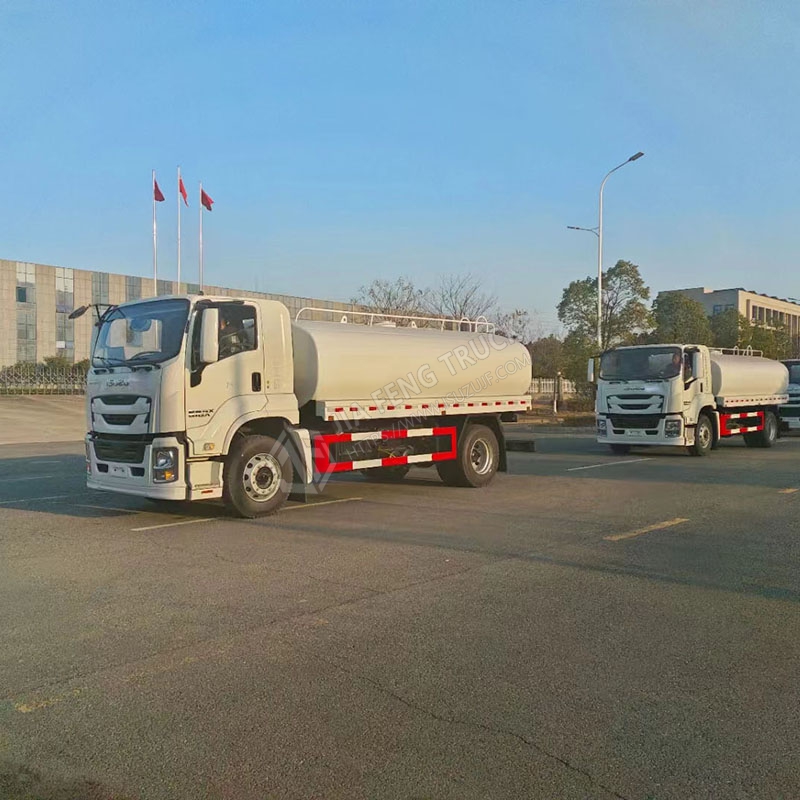

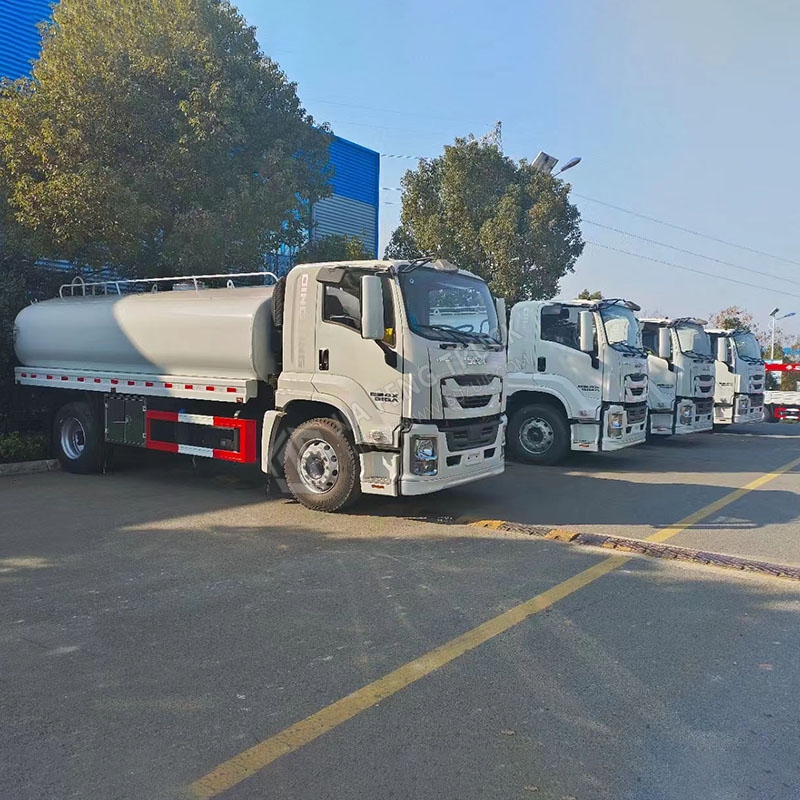

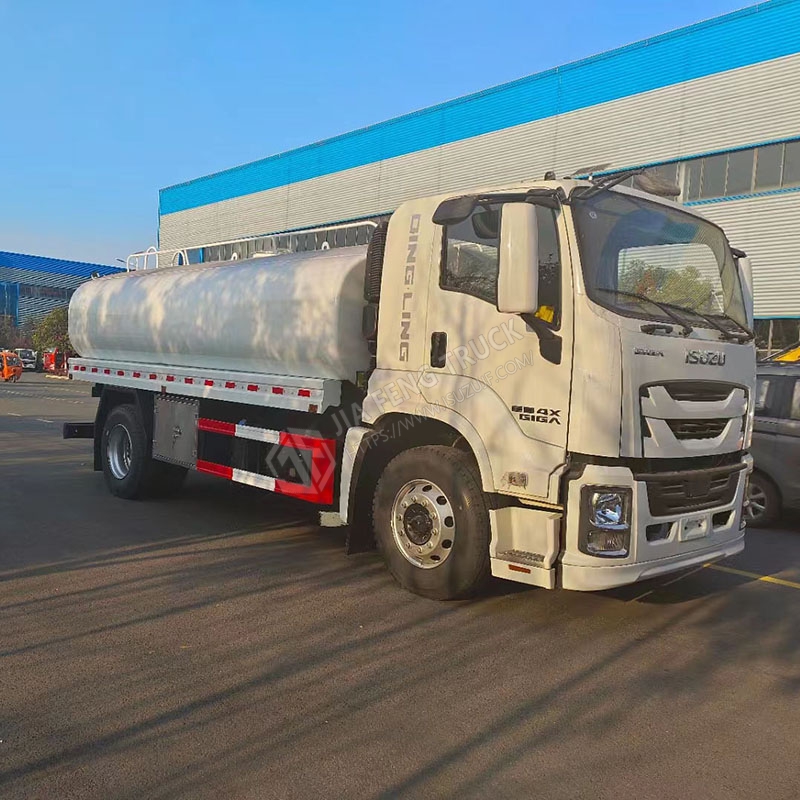

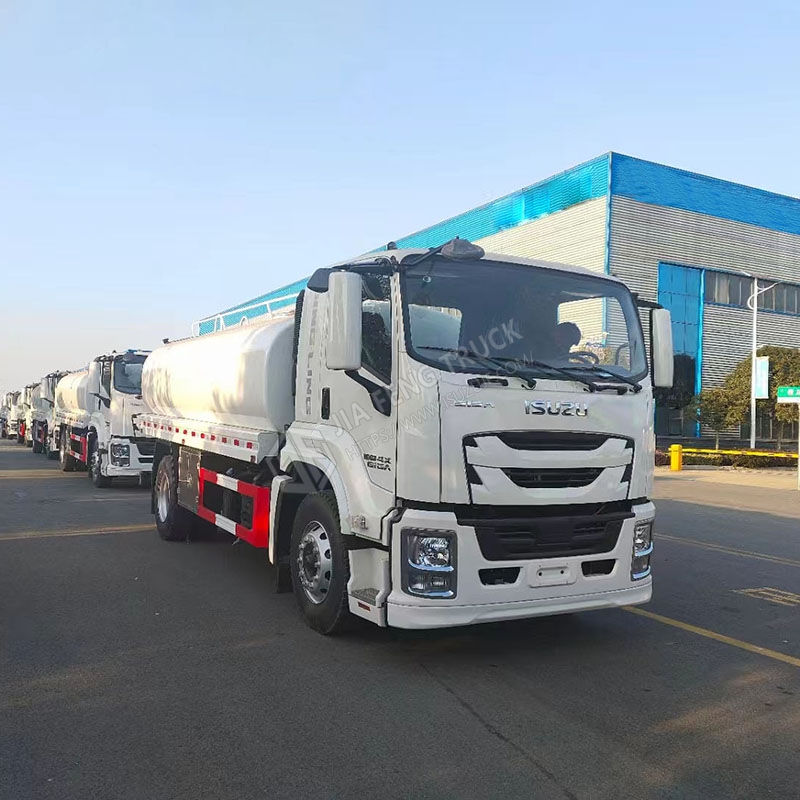

Isuzu 12-Ton Water Supply Truck
