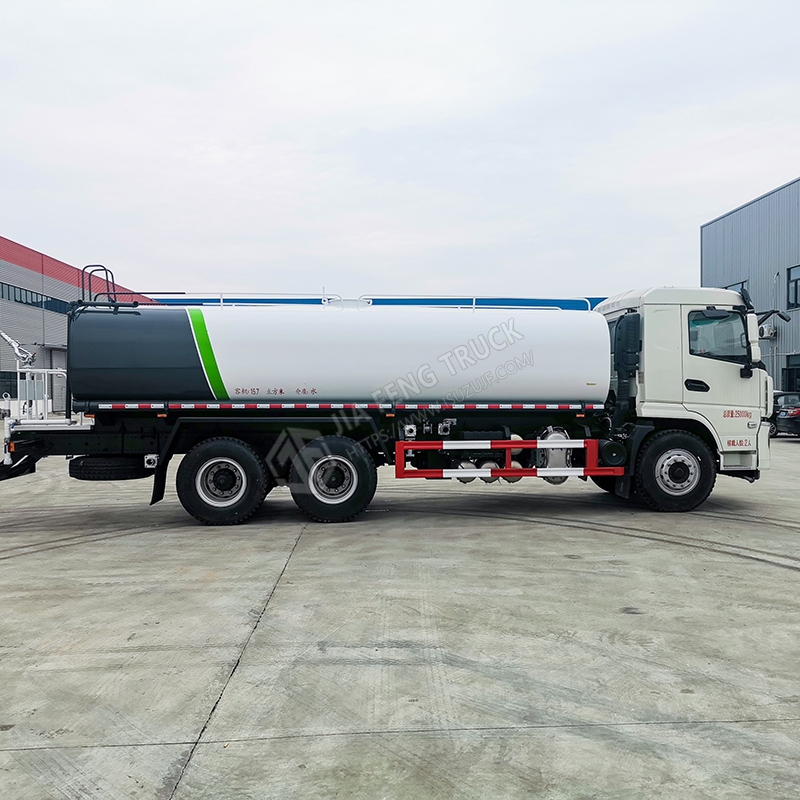

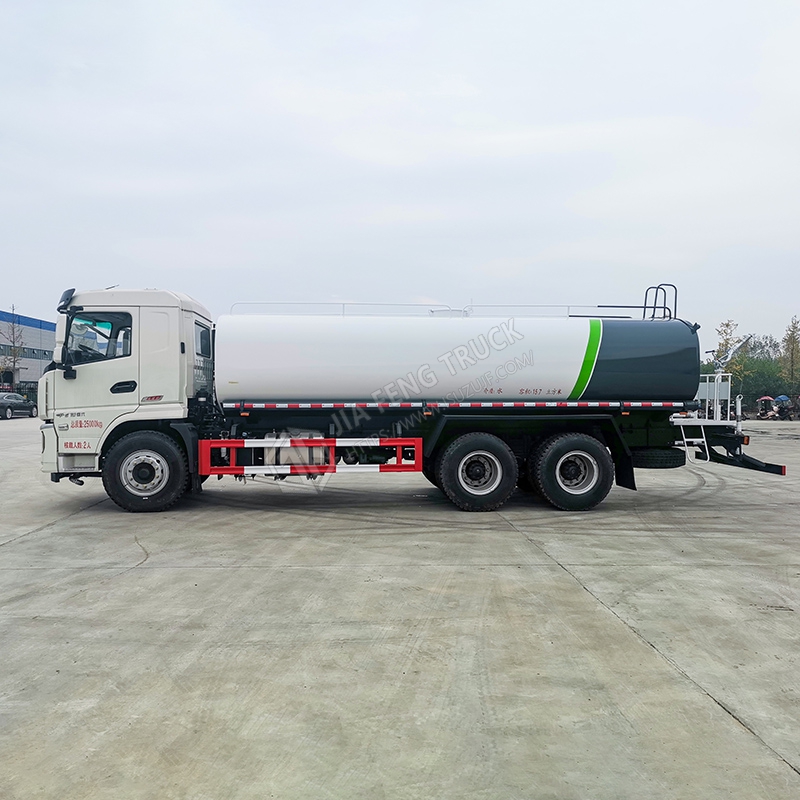

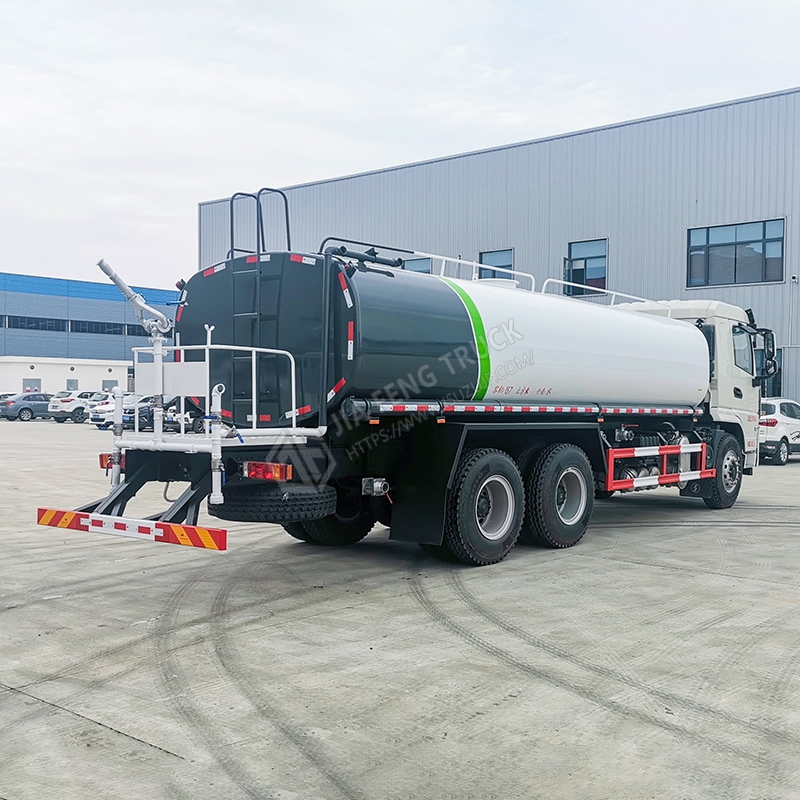

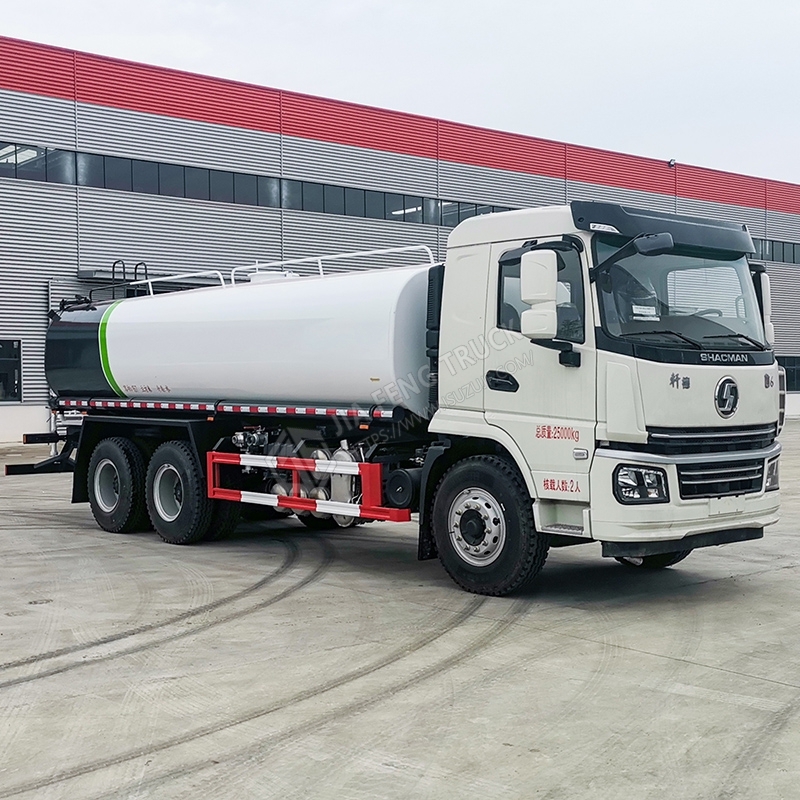

Quality parameters

Rated loading mass (kg)

14205

Axle load(kg)

7000/18000

Vehicle curb weight (kg)

10600

Maximum total mass (kg)

25000

Size parameters

Length(mm)

10375

Wheelbase (mm)

4375+1350

Width (mm)

2550

Height(mm)

3450

front overhang

1450

Rear suspension

3200

Front track

1900

rear wheelbase

18 60

approach angle

twenty three

departure angle

9

Other parameters

Maximum speed (km/h)

85

Allowed number of   passengers

2, 3 (including driver)

Number of leaf springs

8/10+7

Drive form

4×2

Number of tires

6

Tire specifications

10.00R20, 275/80R22.5   18PR

※Chassis

Chassis model

SX1250GP6444C

Manufacturer

Guangxi Yuchai Machinery Co.,   Ltd.

※   Cab configuration

air conditioner

Air conditioning

Central locking

have

Electric glass

have

Air brake

have

Direction assistance

have

※engine

model

YCS06270-60

Power(kw)/horsepower

1 99 /2 7 0

Manufacturer

Guangxi Yuchai Machinery Co., Ltd.

Displacement (ml)

6234

Rated speed (r/min)

2300

Maximum torque (N ∙ m)

720

Maximum torque speed (r/min)

1600

Emission Standards

GB3847-2005, GB17691-2018 Country VI

※Transmission

brand

Eighth gear

※other

brake

air brake

Voltage (V)

twenty four

turn

power steering

ABS

have

※Tank   body

Water tank capacity (L)

18000-20 000

Tank material

Q235 carbon steel

Thickness(mm)

4

shape

Square and round tank

structure

Welded

Anti-sway board

vertical

manhole

One DN460 manhole with quick   locking/opening device

Schematic diagram of tank structure

(1) Head (2) Upper guardrail   (3) Tank mouth (4) Ladder (5) Lifting lugs (6) Support (7) Sub-beam (8)   Barrel (9) Gun barrel (10) Wave-proof partition (11) Measuring tube

Materials and craftsmanship

◇High-pressure gas leak testing after   the tank is formed, so that the tank has the characteristics of high   strength, stable center of gravity, stable and safe vehicle transportation;

◇The tank body is automatically welded   by gas shielded welding at the welding station to ensure the original quality   of the tank weld seam.

◇The length of the tank is welded with   one-time formed integral longitudinal beams to ensure the strength of the   tank.

◇Carry out overall shot peening   process to eliminate weld stress and remove overall rust.

※High   pressure water pump (standard configuration)

model

9 0QZ60/ 11 0N(S)

Manufacturer

Suizhou Yifeng Pump Industry   Co., Ltd.

flow

60 m3/h

Lift(m)

90

Self-priming height (m)

6.5

Self-priming time (m in/8m)

1

Shaft power(KW)m

22.5

Input shaft speed (min)

1180

Features

◇80QZ60/90N(S) pump is a self-priming   centrifugal pump with a speed increase box. It is mainly composed of a pump   body, impeller, mechanical seal, shaft, speed increase box and other   components.

◇The power required for pump operation   is directly provided by the car engine through the power take-off. As a   ground pumping station, it can also be driven by a motor or diesel engine.

◇When the water source contains   sediment and debris, the inlet of the suction pipe should be placed in the   mesh cover. The total area of the mesh cover's through holes should be   greater than 300cm2, and the mesh diameter should be less than 6mm.

◇The pump shaft seal adopts mechanical   seal, so the pump operates reliably and has a long life.
