Chassis Information
chassis	Sinotruk Howo ZZ5357TXFV464MF5	wheelbase	4600mm
engine	Sinotruk MC11.350-61	power	257 kW
Drive type	Rear-wheel drive 4x2
【Container 】
Water tank material	High-quality steel plates, treated with advanced anti-corrosion technology.	Foam can:	High-quality 304 stainless steel
capacity:	11900 kg of water, 3824 kg of foam
Fire pumps and piping systems
Fire pump brands	Shanghai Rongshen	Fire pump model	CB10/60 low-pressure fire pump
Fire pump pressure	1.0MPa	Fire pump flow rate	60L /s
Installation type	Rear	Water diversion time	≤35s
Pump material	Wear-resistant and corrosion-resistant to meet sealing requirements	Maximum vacuum	≥85kPa
Water absorption depth	≥7m
vacuum pump	For piston-type vacuum pumps, prioritize electric vacuum priming pumps from the same brand as the fire pumps.
Fire monitor
brand	West	model	P L8/48 type fire monitor
range	Water ≥ 60 m , Foam ≥ 55 m	pressure	1.0 MPa
Location	Located on top of the water tank
Power take-off ( PTO )
Type	Full-power sandwich power take- off	Cooling method	Forced water cooling
[ Equipment box and pump room ]	The frame and skin are made of high-quality carbon steel; the internal equipment racks are made of aluminum alloy profiles, and the interior panels are made of anodized aluminum sheets.
Electrical System	1. The cab is equipped with a long row of luxurious red police lights on the top.
	2. The alarm power is 100W;
	3. To ensure safe use, the entire vehicle wiring harness is made of a single unit, and waterproof plugs are used at the connection points to ensure the safety of the wiring during use.
	4. The vehicle is equipped with one fire scene lighting lamp on the roof ; safety indicator lights are installed on both sides of the vehicle, and reflective markings are affixed to the body and rear of the vehicle in accordance with standards.
	5. All equipment boxes are equipped with LED lights for convenient nighttime operational illumination.
	strobe lights are installed on each side of the vehicle , and safety indicator lights and side retroreflectors are installed below them. (Combined type ) It is equipped with front and rear side marker lights, one turn signal on each side, and lighting in the crew compartment, equipment box and pump room.
	7. The siren, warning lights, and strobe lights are independent auxiliary circuits, and the control devices are installed in the driver's cab.
	8. All lines are protected by bushings, and different colors are used to distinguish the connection type and function of the lines.
	9. Equipment on the instrument panel in the pump room: level gauge, tachometer, pressure gauge, vacuum gauge, equipment box lighting switch, etc.
Instrument panel and onboard devices	1. The dashboard is located in the pump room at the rear of the vehicle, and includes a control panel with ample lighting;
	2. All control handles, switches, and indicator lights have Chinese labels nearby;
	3. Operating instructions are provided.
	4. All signs are durable and highly adhesive, and can withstand the effects of drastic changes in temperature and climate.
	5. The control panel is made of high-quality aluminum plate, which is beautiful, durable, and lightweight.
	6. The pump room operating system is located at the rear of the vehicle, with no pressure outlet, to ensure the safety of operators, and is equipped with panel lighting.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

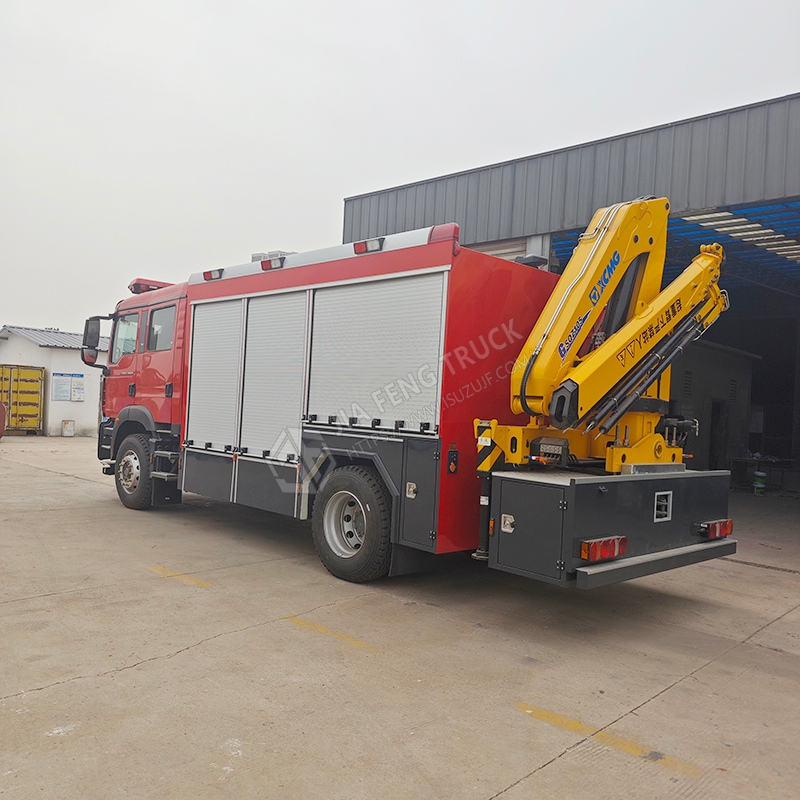

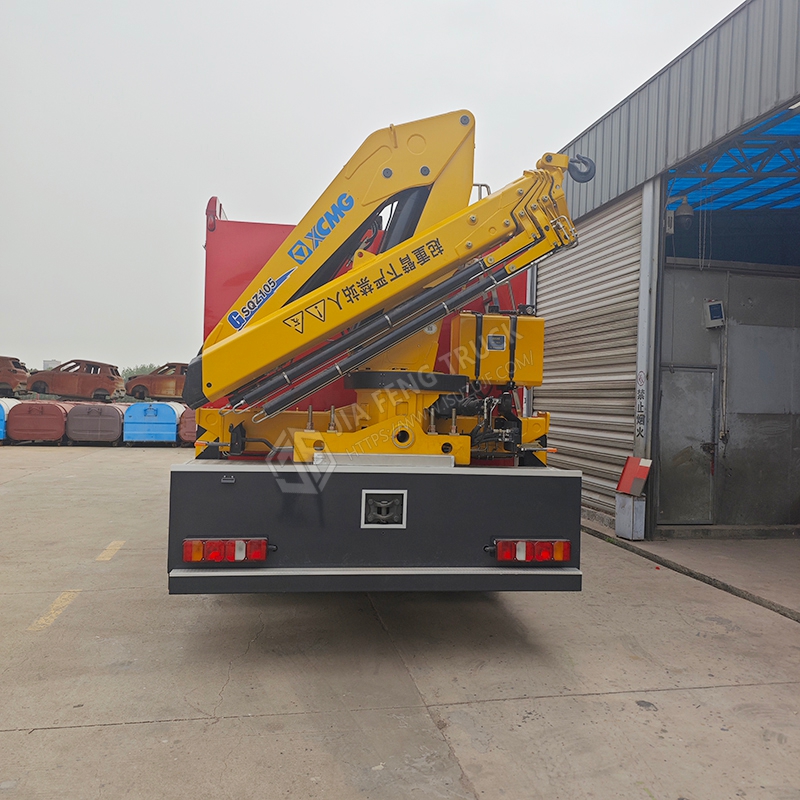

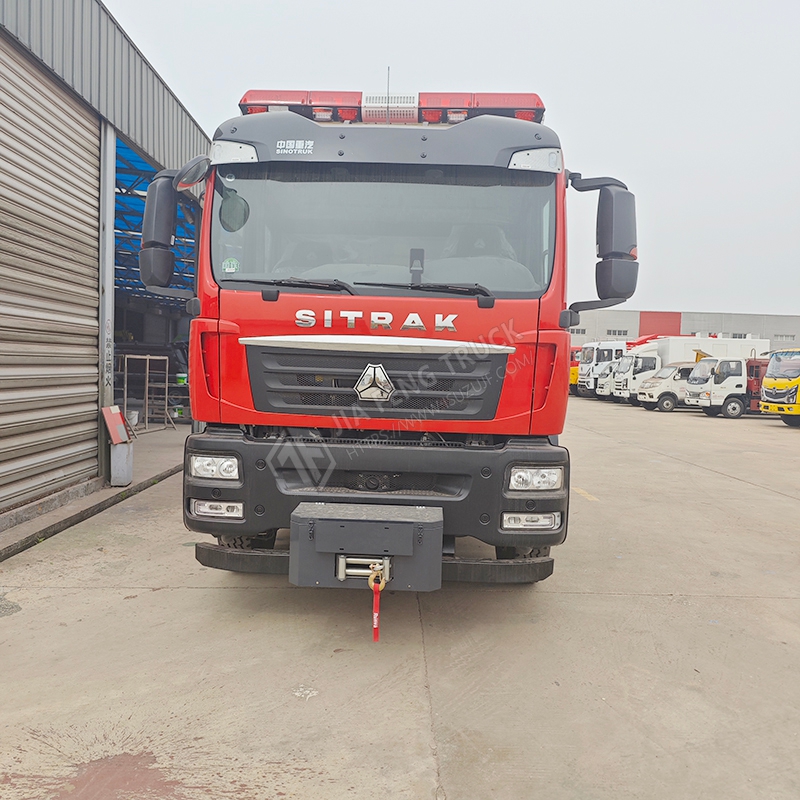

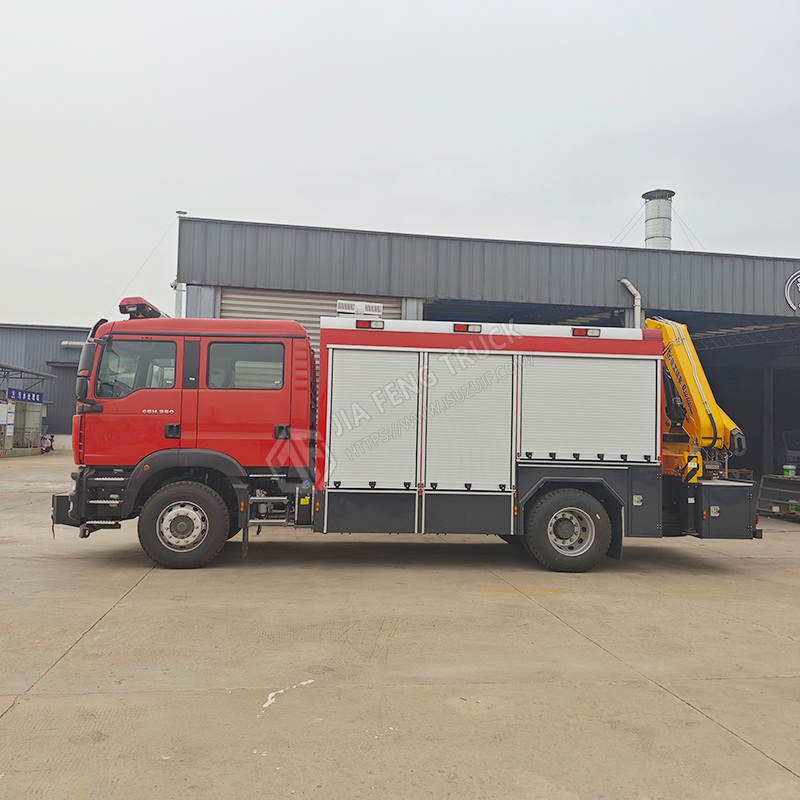

Sinotruk Fire Truck with Crane
