[Chassis information]
end plate	Sinotruk Howo ZZ5447TXFV466MF5	Wheelbase	1950+4600+1400mm
engine	Sinotruk MC11.46-61	power	341kW
Drive type	Rear wheel drive	8X4
【Tank】
Water tank material	High-quality steel plate with high-tech anti-corrosion treatment	Foam tank:	High quality 304 stainless steel
capacity:	Water: 25000Kg
[Fire pump and piping system]
fire pump brand	Shanghai Rongshen	Fire pump model	CB10/100 Low pressure fire pump
fire pump pressure	1.0MPa	Fire pump flow	100L/s
Installation type	Rear	Water diversion time	≤35s
Pump material	Wear-resistant and corrosion-resistant to meet sealing requirements	Maximum vacuum degree	≥85kPa
		Water absorption depth	≥7m
Vacuum pump	Piston type , vacuum pumps are preferably electric vacuum water diversion pumps of the same brand as fire pumps.
【 Fire cannon 】
brand	west	model	PS8/80 type fire monitor
range	Water≥70m	pressure	1.0MPa
Location	on top of the jug
【 PTO 】
Type	Full power sandwich power take- off	cooling method	Forced water cooling
[ Equipment box and pump room ]	The frame and skin are made of high-quality carbon steel; the internal equipment rack is made of aluminum alloy profiles, and the interior panels are oxidized aluminum plates
【 Electrical system 】	1. The top of the cab is equipped with a long row of red luxury police lights.
	2. The alarm power is 100W;
	3. In order to ensure safe use, the entire vehicle line is made of an integral wiring harness, and waterproof plugs are used at the connections to ensure line safety during use.
	4. The roof of the vehicle is equipped with a fire scene lighting lamp ; safety sign lights are provided below both sides of the vehicle, and reflective signs are affixed to the body and rear as standard.
	5. All equipment boxes are equipped with LED lighting to facilitate night combat lighting.
	6. There are two strobe lights on each side of the vehicle, and safety sign lights and side retroreflectors are installed below. (Combined type ) , equipped with front and rear side lights, one turn signal on each side, and lights in the passenger compartment, equipment box, and pump room .
	7. The sirens, warning lights, strobe lights, and circuits are independent additional circuits, and the control devices are installed in the cab.
	8. All lines are protected by sleeves, and different colors are used to distinguish the connection forms and functions of the lines.
	9. Equipment on the dashboard in the pump room: liquid level gauge, tachometer, pressure gauge, vacuum gauge, equipment box lighting switch, etc.
[ Dashboard and on-board equipment ]	1. The instrument panel is located in the pump room at the rear of the vehicle, with a control panel and sufficient lighting;
	2. All control handles, switches, and indicator lights have Chinese logos near them;
	3. There are instructions for operating steps.
	4. All signs have durability and high adhesion, and can withstand the impact of drastic changes in temperature and climate.
	5. The operation panel is made of high-quality aluminum plate, which is beautiful, durable and light in overall weight.
	6. The operating system of the pump room is set at the rear of the vehicle, with no pressure outlet to ensure the safety of the operator, and with panel lighting.

A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.

2. Q: Where is your factory located?

A: We are located in Suizhou City,Hubei Province,China

3.Q:How can i visit there?

A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.

4.Could you customize exactly according to my requirements?

A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

5.Q: Do you provide certification that we need?

A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

6.Q: what's your payment terms?

A:T/T& L/C are preferred.

7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.

8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

9.Q:How is the packing?

A:All the packing comply with exporting standard.

10.Q:How long is the lead time?

A:20-25 working days.

For other questiones,we will reply you ASAP after receiving your consult!

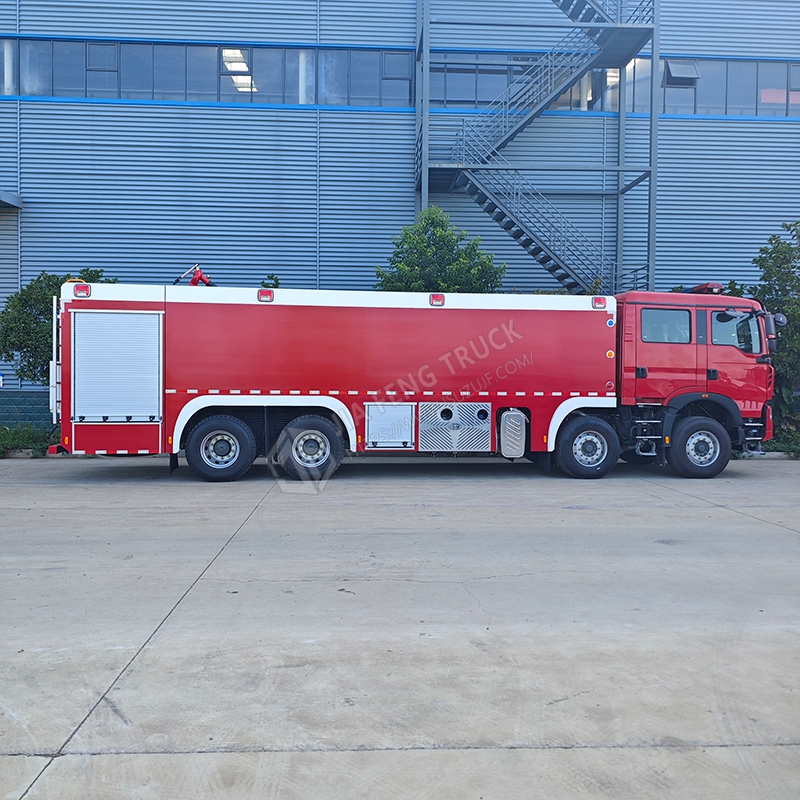

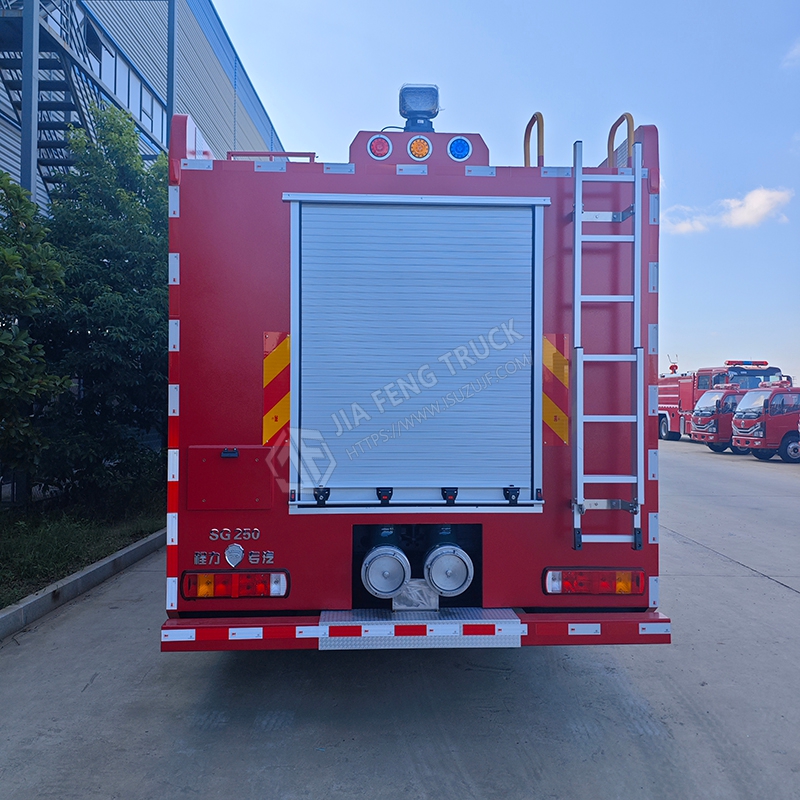

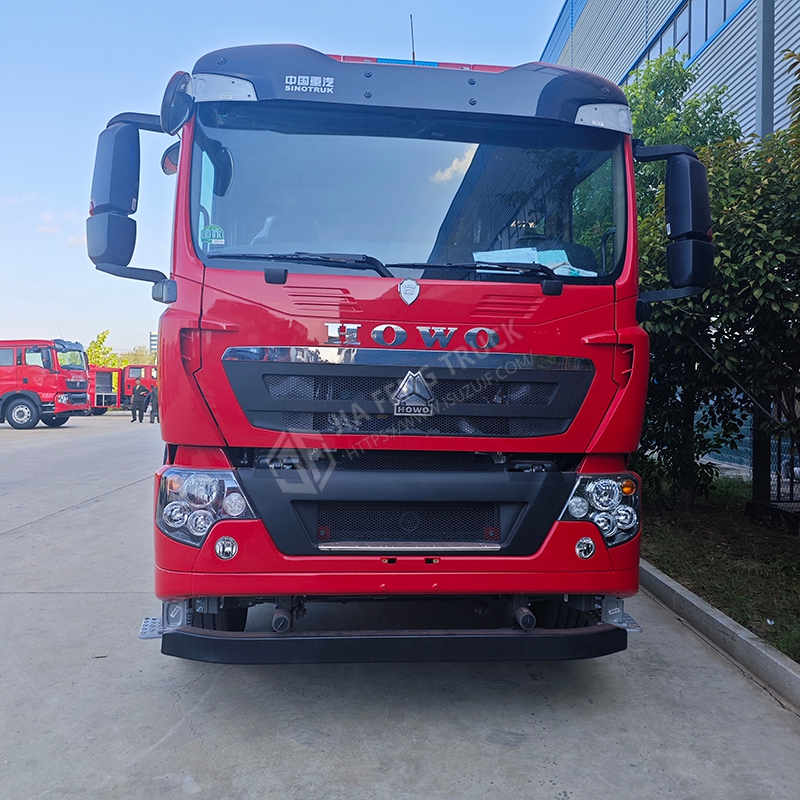

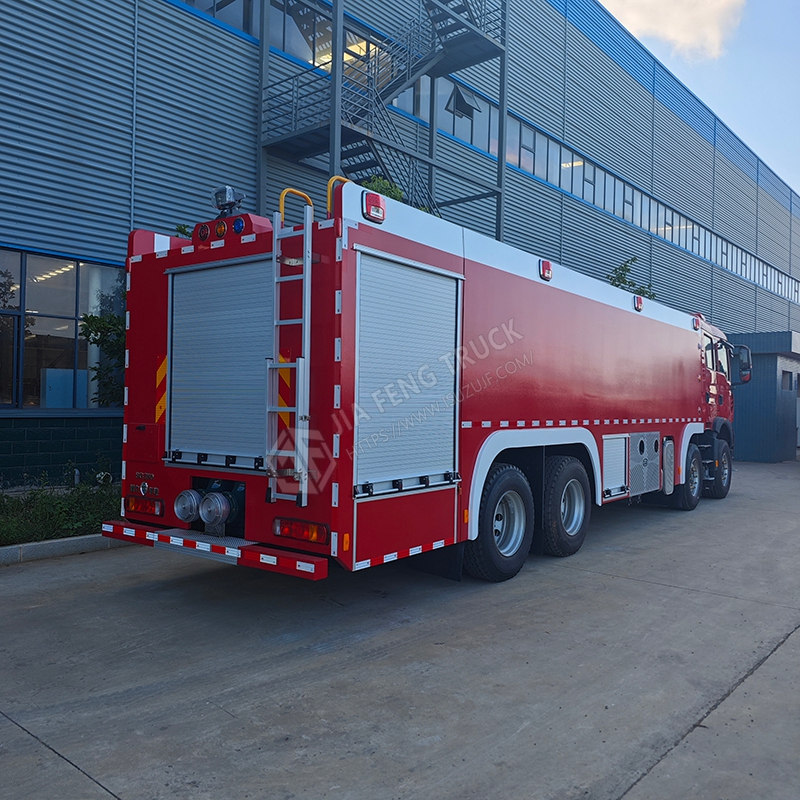

Sinotruk HOWO 8x4 Fire Truck
